ABB 2CDL210010R1660
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

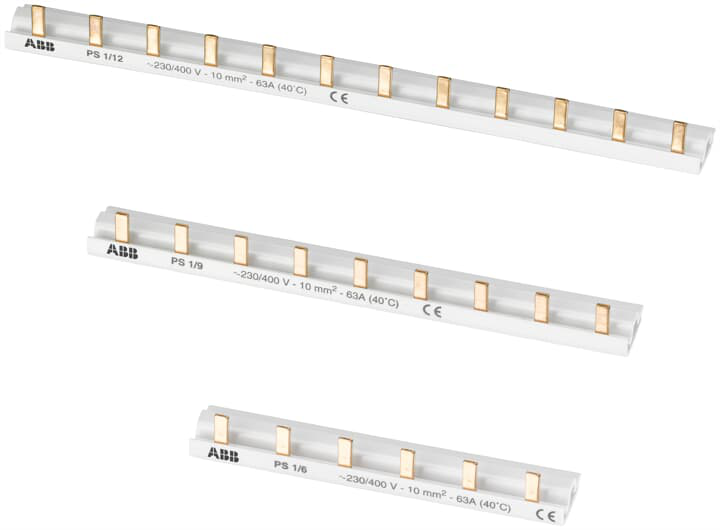

PS1/60/16 A BusbarPS1/60/16A Busbar
ABB 2CDL210010R1660 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 8536 90 10
- eClass
- V11.0 : 27371306
- ETIM 9
- EC000215 - Phase busbar
- IDEA Granular Category Code (IGCC)
- 4378 >> Phase busbar
- Object Classification Code
- W
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 4. Large Equipment (Any External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 1050 mm
- Product Net Height
- 18 mm
- Product Net Weight
- 0.39 kg
- Product Net Width
- 21 mm
- Width in Number of Modular Spacings
- 60
Environmental
- Environmental Information
- DIN EN 60068
- Pollution Degree
- 2
- RoHS Information
- 9AKK108468A1264
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Installation
- Instructions and Manuals
- 2CSC400002D0208
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 8.1 kg
- Package Level 1 Units
- 20 piece
Technical
- Accessory Type
- Busbar
- Color
- grey
- Connection Type
- Pin
- Housing Material
- Light grey, RAL 7035
- Mounting Position
- any
- Number of Mountable Devices
- 60
- Number of Phases
- 1
- Number of Poles
- 60
- Number of Terminals (Nterm)
- 60
- Options Provided
- A
- Overvoltage Category
- III
- Pitch
- 17.5
- RAL Number
- RAL 7035 - Light Grey
- Rated Cross-Section
- 16 mm²
- Rated Frequency (f)
- 50 / 60 HzDC
- Rated Operational Voltage
- 690 V AC/DCMaximum 690 V
- Rated Short-time Withstand Current Low Voltage (Icw)
- 25 kA
- Rated Uninterrupted Current (Iu)
- 80 A
- Standards
- IEC/EN 60947-1
- Sub-Function
- Pins for breaking of
- Suitable For
- S200F200DDA200
- Suitable for Product Class
- 1-pole devices (e.g. S201-SD201)Residual Current Circuit Breakers with Overcurrent Protection
