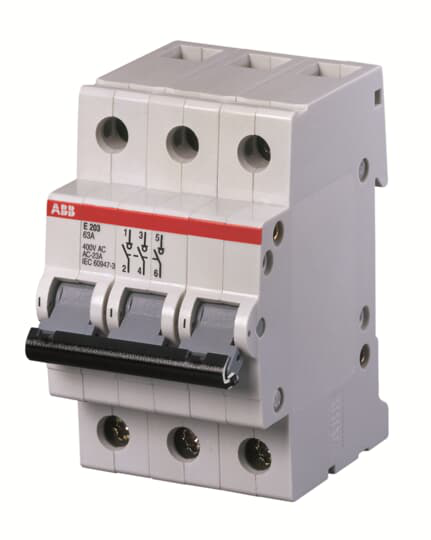

ABB 2CDE283001R0125
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
These devices are suitable for commanding loads and they are realized according EN 60947-3 and EN 60669-1 respectively. Fast removal without dismantling of the busbar. Captive screws with recessed/slotted head. Pozidrive size 2. Add-on of up to 3 auxiliary contact S2C-H6R possible Integrated lay-on edge for labeling system ILS. Locking device as accessories for unauthorized ON/OFF. Approval: VDE, CCC, KEMAE203/125R Switch Disconnector
ABB 2CDE283001R0125 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 8536 50 80
- eClass
- V11.0 : 27142301
- ETIM 9
- EC001545 - Main switch for distribution board
- Object Classification Code
- Q
- WEEE B2C / B2B
- Business To Consumer
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Built-In Depth (t2)
- 70 mm
- Product Net Depth / Length
- 69 mm
- Product Net Height
- 85 mm
- Product Net Weight
- 0.29 kg
- Product Net Width
- 52.5 mm
- Width in Number of Modular Spacings
- 3
Environmental
- Degree of Protection
- IP10
- REACH Declaration
- 9AKK107492A1906
- RoHS Information
- 2CDK440002K0201
- RoHS Status
- Following EU Directive 2011/65/EU
Installation
- Instructions and Manuals
- 2CSC400002D0208
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.915 kg
- Package Level 1 Units
- 3 piece
Technical
- Accessories Available
- Yes
- Cover Color
- Grey
- Input Voltage Type
- AC
- Number of Contacts CO
- 0
- Number of Contacts NC
- 0
- Number of Contacts NO
- 3
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 6.1 W
- Rated Conditional Short-Circuit Current (Inc)
- 6 kA
- Rated Current (In)
- 125 A
- Rated Operational Voltage
- 230 / 400 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- 6 kA
- Rated Voltage (Ur)
- 400 V12 V Minimum
- Recommended Screw Driver
- Pozidriv 2
- Standards
- IEC/EN 60947-3
- Switch Type
- Off
