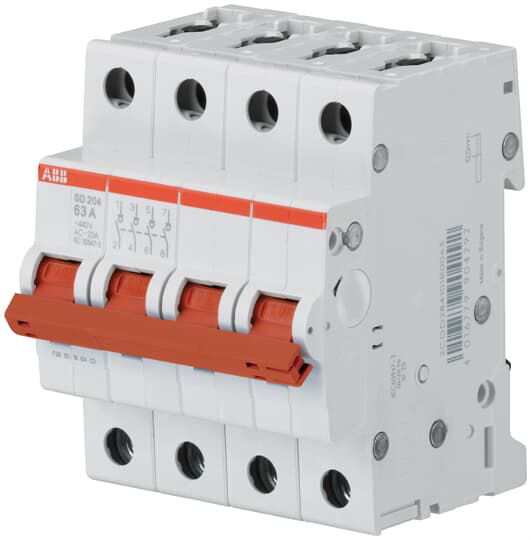

ABB 2CDD284101R0063
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SD204/63 - Switch Disconnector - 4P, 63ASD204/63 Switch Disconnectors
ABB 2CDD284101R0063 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 8536 90 95
- eClass
- V11.0 : 27142301
- ETIM 9
- EC001545 - Main switch for distribution board
- Object Classification Code
- Q
- WEEE B2C / B2B
- Business To Consumer
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Built-In Depth (t2)
- 69 mm
- Product Net Depth / Length
- 69 mm
- Product Net Height
- 88 mm
- Product Net Weight
- 0.34 kg
- Product Net Width
- 70 mm
- Width in Number of Modular Spacings
- 4
Environmental
- Ambient Air Temperature
- Operation -25 ... +55 °CStorage -40 ... +70 °C
- Degree of Protection
- IP20Enclosure with Cover IP40
- Environmental Conditions
- 28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 %
- Environmental Information
- 2CDK400618D0201
- Pollution Degree
- 3
- REACH Declaration
- 9AKK107492A1906
- Resistance to Shock acc. to IEC 60068-2-27
- 25g 2 shocks 13 ms
- Resistance to Vibrations acc. to IEC 60068-2-6
- 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
- RoHS Information
- 2CDK440036D0202
- RoHS Status
- Following EU Directive 2011/65/EU
Installation
- Instructions and Manuals
- 2CDC441015D0201
Ordering
- E-Number (Finland)
- 3601648
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.36 kg
- Package Level 1 Units
- 1 piece
Technical
- Accessories Available
- Yes
- Actuator Marking
- I / O
- Actuator Material
- Insulation Group II, Red, Sealable
- Actuator Type
- Toggle
- Connecting Capacity
- Busbar 10 / 10 mm²Flexible 0.75 ... 16 mm²Rigid 0.75 ... 25 mm²Stranded 0.75 ... 25 mm²
- Contact Position Indication
- ON / OFF
- Cover Color
- Grey
- Electrical Endurance
- 10000 AC cycle
- Housing Material
- Insulation Group I, RAL 7035
- Input Voltage Type
- AC
- Mechanical Endurance
- 20000 cycle
- Mounting Position
- any
- Number of Contacts CO
- 0
- Number of Contacts NC
- 0
- Number of Contacts NO
- 4
- Number of Poles
- 4
- Operational Voltage
- Maximum 462 V ACMinimum 12 V AC
- Overvoltage Category
- III
- Power Loss
- at Rated Operating Conditions per Pole 4.5 W
- Rated Conditional Short-Circuit Current (Inc)
- 25 kA
- Rated Current (In)
- 63 A
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 4 kVat 2000 m 5 kVat Sea Level 6.2 kV
- Rated Operational Voltage
- 440 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- 25 kA
- Rated Voltage (Ur)
- 440 V12 V Minimum
- Recommended Screw Driver
- Pozidriv 2
- Screw Terminal Type
- Failsafe Bi-directional Cylinder-lift Terminal
- Standards
- IEC/EN 60947-3
- Switch Type
- Off
- Terminal Type
- Screw Terminals
- Tightening Torque
- 2.8 N·m
- Utilization Category
- Switching of motor loads or other highly inductive loads - frequent actuation (AC-23A)
