ABB 2CCS894001R0204
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

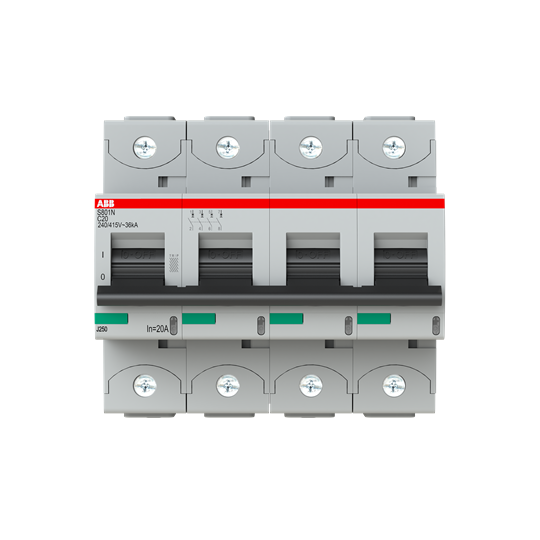

The S804N-C20 is a 4-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 20 A. It is a current limiting device with a maximum breaking capacity of 36kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804N-C20 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S804N-C20 more comfortable. Due to the fast arc extinction of S804N-C20 your application will be secured.S804N-C20 High Performance MCB
ABB 2CCS894001R0204 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 85362020
- eClass
- V11.0 : 27141901
- ETIM 9
- EC000042 - Miniature circuit breaker (MCB)
- Object Classification Code
- F
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Built-In Depth (t2)
- 82.5 mm
- Dimension Diagram
- 2CCC413003C0201
- Product Net Depth / Length
- 82.5 mm
- Product Net Height
- 95 mm
- Product Net Weight
- 980 g
- Product Net Width
- 106 mm
- Size
- 4 modules
- Width in Number of Modular Spacings
- 6
Environmental
- Ambient Air Temperature
- Operation -25 … 60 °C
- Ambient Temperature
- -25...60 °C
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
- Degree of Protection
- IP20
- Environmental Information
- 2CCY413207D0203
- Pollution Degree
- 3
- Reference Ambient Air Temperature
- acc. to IEC60947-2 30 °Cacc. to EN60898-1 30 °C
- Resistance to Shock acc. to IEC 60068-2-27
- 5 g30 ms
- Resistance to Vibrations acc. to IEC 60068-2-6
- 2 - 13.2 Hz / 1mm13.2 - 100Hz / 0.7gwith load 100% x Ie
- RoHS Information
- 9AKK107680A3903 2CCC005083D0202
- RoHS Status
- Following EU Directive 2011/65/EU
Installation
- Instructions and Manuals
- 2CCC413016M0008
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 1010 g
- Package Level 1 Units
- box 1 piece
Technical
- Accessories Available
- Yes
- Actuator Marking
- I / O
- Connecting Capacity
- Flexible 0 … 50 mm²Rigid 0 … 70 mm²
- Contact Position Indication
- ON / OFF / TRIP
- Electrical Endurance
- 10000 cycle
- Energy Limiting Class
- 3
- Frequency (f)
- 50 ... 60 Hz
- Housing Material
- Insulation group I, RAL 7035
- Input Voltage Type
- AC/DC
- Mechanical Endurance
- 10000 cycle
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position
- Any
- Number of Poles
- 4
- Number of Protected Poles
- 4
- Operational Voltage
- Maximum 230/400 V ACMinimum 12 V AC
- Overvoltage Category
- IV
- Power Loss
- 14 Wat Rated Operating Conditions per Pole 3.5 W
- Rated Conditional Short-Circuit Current (Inc)
- (230 V) 36 kA(400 V) 36 kA
- Rated Current (In)
- 20 A
- Rated Frequency (f)
- 50/60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 8 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC/EN 60664-1 690 V
- Rated Operational Current (Ie)
- 20 A
- Rated Operational Voltage
- acc. to IEC 60898-1 400 V
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (240 / 415 V AC) 30 kA(254 / 440 V AC) 15 kA(400 / 690 V AC) 3 kA(125 V DC) 20 kA
- Rated Short-Circuit Capacity
- (230 V) 20 kA(400 V) 20 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (230 V) 36 kA(400 V) 4.5 kA
- Rated Voltage (Ur)
- acc. to IEC 60947-2 690 V ACacc. to IEC 60947-2 500 V DCacc. to IEC 60898-1 400 V AC
- Recommended Screw Driver
- Pozidriv 2
- Release Type
- C
- Remarks
- Connection from top and bottomConnecting with CU onlyIP40 in enclosure with coverCage terminal with captive screw
- Standards
- IEC/EN 60947-2, IEC/EN 60898-1
- Terminal Type
- Screw Terminals
- Tightening Torque
- 3.5 N·m31 in·lb
- Tripping Characteristic
- C
- Type of Residual Current
- standard version
