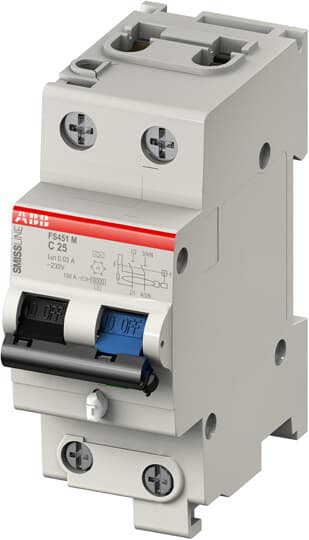

ABB 2CCL462110E0104
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
FS451M-C10/0,03 Residual Current Circuit Breaker with overcurrent Protection 2 Poles C Characteristic 10A 10000 ~230/400VFS451M-C10/0.03 Residual Current Circuit Breaker with Overcurrent Protection
ABB 2CCL462110E0104 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- CN8
- 85362020
- eClass
- V11.0 : 27142207
- ETIM 9
- EC000905 - Earth leakage circuit breaker
- Object Classification Code
- FB
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Built-In Depth (t2)
- 91 mm
- Dimension Diagram
- 2CCC451027C0106 Ind B
- Product Net Depth / Length
- 72 mm
- Product Net Height
- 95 mm
- Product Net Weight
- 210 g
- Product Net Width
- 69 mm
- Size
- 2 modules
- Width in Number of Modular Spacings
- 2
Environmental
- Ambient Air Temperature
- Operation -25...40 °C
- Ambient Temperature
- –25...60 °C
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108468A3363
- Degree of Protection
- IP20
- Environmental Information
- 9AKK108467A9561
- Pollution Degree
- 2
- RoHS Information
- 2CCC413008D0206_RoHS
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Installation
- Instructions and Manuals
- 9AKK107680A1666
Ordering
- E-Number (Switzerland)
- 809118832
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 248 g
- Package Level 1 Units
- carton 2 piece
Technical
- Accessories Available
- Yes
- Earthing Switch Type
- Undelayed
- Energy Limiting Class
- 3
- Frequency (f)
- 50/60 Hz
- Input Voltage Type
- AC
- Leakage Current Type
- A
- Maximum Surge Current
- 0.25 kA
- Number of Poles
- 2
- Number of Protected Poles
- 1
- Operating Characteristic
- Instantaneous
- Options Provided
- Smissline Classic
- Overvoltage Category
- III
- Position of Neutral Terminals
- Right
- Power Loss
- 3.4 W
- Rated Conditional Short-Circuit Current (Inc)
- 10 kA
- Rated Cross-Section
- 1 - Solid-Core 0...35 mm²4 - Multi-Wired 0...35 mm²
- Rated Current (In)
- 10 A
- Rated Frequency (f)
- 50...60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 4 kV
- Rated Insulation Voltage (Ui)
- 500 V
- Rated Operational Current (Ie)
- 10 A
- Rated Operational Voltage
- 240 V AC
- Rated Residual Current
- 30 mA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 10 kA
- Rated Short-Circuit Capacity
- (240 V AC) 10 kA
- Rated Voltage (Ur)
- 240 V
- Release Type
- C
- Standards
- IEC/EN 61009
- Tripping Characteristic
- C
- Type of Residual Current
- A Type
Technical UL/CSA
- Short-Circuit Current Rating (SCCR)
- 0.03 A
