ABB 1SVR560730R3400
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

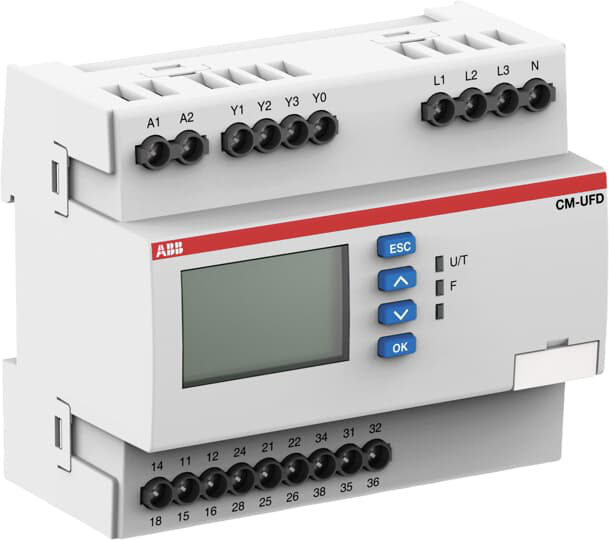

The CM-UFD.M22 is a multi-functional grid feeding monitoring relay, which provides interface protection and is to be installed between a renewable energy system and the public grid. This innovative relay guarantees grid stability and seeks to prevent blackouts. If the voltage or frequency magnitudes of the public grid are outside the permited range, then the device changes status and acts to disconnect the renewable energy system from the public grid by sending a signal to a decoupling unit (e.g. contactor, switch disconnector or circuit breaker). As soon as the grid is stable again, the system may automatically reconnected. The CM-UFD.M22 provides different monitoring functions including over-/undervoltage and over-/underfrequency as well as rate of change of frequency (RoCoF) and vector shift monitoring functions, which detect a loss of mains event. This grid feed monitoring relay is certified in accordance to CEI 0-21.CM-UFD.M22 Grid feeding monitoring relay 3c/o,L-L= 0-540VAC,L-N=0-312VAC
ABB 1SVR560730R3400 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371801
- E-Number (Finland)
- 2712562
- ETIM 9
- EC001438 - Voltage monitoring relay
- Object Classification Code
- B
Dimensions
- Product Net Depth / Length
- 67 mm
- Product Net Height
- 90 mm
- Product Net Weight
- 0.304 kg
- Product Net Width
- 108 mm
Environmental
- Ambient Air Temperature
- Operation -20 ... +60 °CStorage -25 ... +50 °C
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Customs Tariff Number
- 85364900
- Minimum Order Quantity
- 1 piece
Technical
- Connecting Capacity
- Flexible with Ferrule 1x 0.25 ... 4.0 mm²Flexible with Ferrule 2x 0.25 ... 0.75 mm²Flexible with Insulated Ferrule 1x 0.25 ... 4.0 mm²Flexible with Insulated Ferrule 2x 0.25 ... 0.75 mm²Flexible 1x 0.2 ... 4.0 mm²Flexible 2x 0.2 ... 1.5 mm²Rigid 1x 0.2 ... 6.0 mm²Rigid 2x 0.2 ... 1.5 mm²
- Degree of Protection
- Housing IP20Terminals IP20
- Electrical Durability
- AC-12 50000 cycle
- Function
- Over- and undervoltage monitoringInterrupted neutral monitoringOver- and underfrequency monitoring10 minutes average value monitoringROCOF monitoring
- Measuring Range
- 0 ... 540 V AC
- Mechanical Durability
- 30000000 cycle
- Minimum Switching Capacity
- 24 V10 mA
- Mounting on DIN Rail
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Mounting Position
- 1 ... 6
- Output
- 3 c/o (SPDT) contacts
- Pollution Degree
- 3
- Rated Control Supply Voltage (Us)
- 24 ... 240 V AC/DC
- Rated Operational Current AC-12 (Ie)
- (230 V) 4 A
- Rated Operational Current AC-15 (Ie)
- (230 V) 3 A
- Rated Operational Current DC-12 (Ie)
- (24 V) 4 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 2 A
- Short-Circuit Protective Devices
- Output Circuit NC - F Type Fuses 10 AOutput Circuit NO - F Type Fuses 10 A
- Standards
- CEI 0-21IEC/EN 63000IEC/EN 60255-26IEC/EN 60255-27IEC/EN 61000-6-3
- Terminal Type
- Screw Terminals
- Tightening Torque
- 0.5 ... 0.6 N·m
- Wire Stripping Length
- 8 mm
Technical UL/CSA
- Connecting Capacity UL/CSA
- Flexible with Ferrule 1x 24-12 AWGFlexible with Ferrule 2x 24-18 AWGFlexible with Insulated Ferrule 1x 24-12 AWGFlexible with Insulated Ferrule 2x 24-18 AWGFlexible 1x 24-12 AWGFlexible 2x 24-16 AWGRigid 1x 24-10 AWGRigid 2x 24-16 AWG
- Tightening Torque UL/CSA
- 4.4 ... 5.3 in·lb
