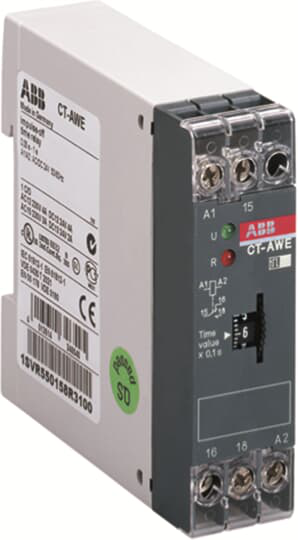

ABB 1SVR550151R3100
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The CT-AWE is a single-function electronic time relay from the CT-E timer range. It provides an impulse-OFF (trailing edge interval) function with a time range from 0.05 s to 1 s. This time relay operates with a rated control supply voltage of 220 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 4 A. A control input works with voltage-related (non-floating) triggering.CT-AWE Time relay, impulse-OFF 1c/o, 0.05-1s, 220-240VAC,w/o aux.supply
ABB 1SVR550151R3100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371605
- E-Number (Finland)
- 3580884
- ETIM 9
- EC001439 - Timer relay
- Object Classification Code
- K
Dimensions
- Product Net Depth / Length
- 78.5 mm
- Product Net Height
- 78 mm
- Product Net Weight
- 0.067 kg
- Product Net Width
- 22.5 mm
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Customs Tariff Number
- 85364900
- Minimum Order Quantity
- 1 piece
- Replacement Product ID (NEW)
- 1SVR508120R0000
Technical
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position
- 1 ... 6
- Output
- 1 c/o (SPDT) contact
- Rated Control Supply Voltage (Us)
- 220 ... 240 V AC
- Rated Operational Current AC-12 (Ie)
- (230 V) 4 A
- Rated Operational Current AC-15 (Ie)
- (230 V) 3 A
- Rated Operational Current DC-12 (Ie)
- (24 V) 4 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 2 A
- Standards
- CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61812-1UL 508
- Terminal Type
- Screw Terminals
- Time Range
- 0.05 ... 1 s
- Timer Relay Type
- Impulse OFF without Auxiliary Voltage
