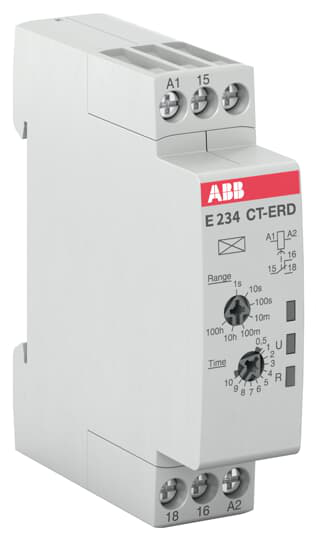

ABB 1SVR500100R0000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The CT-ERD.12 is a single-function electronic time relay from the CT-D timer range. It provides an ON-delay (delay on make) function with 7 time ranges from 0.05 s to 100 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 6 A.CT-ERD.12 Time relay, ON-delay 1c/o, 24-240VAC 24-48VDC
ABB 1SVR500100R0000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371605
- E-Number (Finland)
- 2712640
- E-Number (Sweden)
- 4033006
- ETIM 9
- EC001439 - Timer relay
- Object Classification Code
- K
Dimensions
- Product Net Depth / Length
- 63 mm
- Product Net Height
- 70 mm
- Product Net Weight
- 0.052 kg
- Product Net Width
- 17.5 mm
Environmental
- Ambient Air Temperature
- Operation -20 ... +60 °CStorage -40 ... +85 °C
- Maximum Operating Altitude Permissible
- Without Derating 2000 m
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Customs Tariff Number
- 85364900
- Minimum Order Quantity
- 1 piece
Technical
- Connecting Capacity
- Flexible 1x 0.5 ... 2.5 mm²Flexible 2x 0.5 ... 1.5 mm²Rigid 1x 0.5 ... 4 mm²Rigid 2x 0.5 ... 1.5 mm²
- Degree of Protection
- Housing IP50Terminals IP20
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position
- 1 ... 6
- Output
- 1 c/o (SPDT) contact
- Overvoltage Category
- III
- Pollution Degree
- 3
- Rated Control Supply Voltage (Us)
- 24 ... 240 V AC24 ... 48 V DC
- Rated Frequency (f)
- DC50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- Input Circuit 4 kV
- Rated Insulation Voltage (Ui)
- Input Circuit / Output Circuit 300 V
- Rated Operational Current AC-12 (Ie)
- (230 V) 6 A
- Rated Operational Current AC-15 (Ie)
- (230 V) 3 A
- Rated Operational Current DC-12 (Ie)
- (24 V) 6 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 2 A
- Rated Operational Voltage
- Auxiliary Circuit 250 V
- Recommended Screw Driver
- 0.8 x 4Pozidriv 1
- Short-Circuit Protective Devices
- Output Circuit NC - F Type Fuses 6 AOutput Circuit NO - F Type Fuses 10 A
- Standards
- CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61812-1UL 508
- Terminal Type
- Screw Terminals
- Tightening Torque
- 0.5 ... 0.8 N·m
- Time Range
- 0.05 s ... 100 h
- Timer Relay Type
- ON-Delay
- Wire Stripping Length
- 7 mm
Technical UL/CSA
- Connecting Capacity UL/CSA
- Flexible 1x 18-14 AWGFlexible 2x 18-16 AWGRigid 1x 20-12 AWGRigid 2x 20-16 AWG
- Contact Rating UL/CSA
- C300
- Flammability According to UL94
- V-2
- Maximum Operating Voltage UL/CSA
- Output Circuit 300 V AC
- Pilot Duty UL/CSA
- C300
- Tightening Torque UL/CSA
- 4.43 ... 7.08 in·lb
