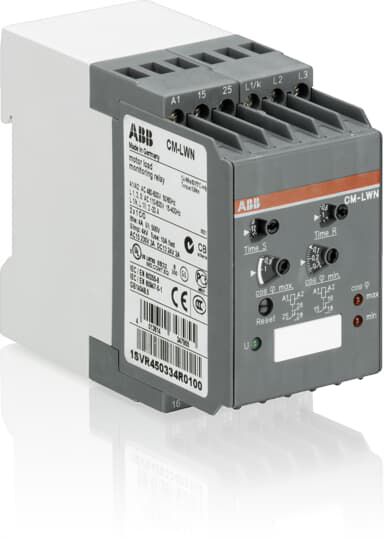

ABB 1SVR450331R0100
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The CM-LWN relay is from the CM motor load monitors range. This relay operates with a rated control supply voltage of 220-240 V AC, has a 2 x 1 c/o (SPDT) output with contacts rated at 250 V / 4 A and works according to the closed-circuit principle. Its measuring principle is based on the evaluation of the phase shift between the voltage and the current in one phase of single- or three-phase asynchronous motors (squirrel cage). The measuring circuit is designed for measuring voltages of 110-500 V AC and measuring currents of 2-20 A AC. The window (over- and underload) monitoring allows setting of two individual threshold values, one for maximum load and one for minimim load. The hysteresis is fixed at 4 ° related to the phase angle. The tripping delay is adjustable within a range of 0.2 to 2 s and the start-up delay within a range of 0.3 to 30 s. A sealable transparent cover for protection against unauthorized changes is available as accessory.CM-LWN Motor load monitor, 2x1c/o L1-L2-L3=500VAC,L1/k-L1/l=20A,220-240VAC
ABB 1SVR450331R0100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- 7.0 27371016
- ETIM 4
- EC002057 - Power relay
- ETIM 5
- EC002057 - Power relay
- ETIM 6
- EC002057 - Power relay
- ETIM 7
- EC002057 - Power relay
- Object Classification Code
- B
Container Information
- Package Level 1 Depth / Length
- 46 mm
- Package Level 1 EAN
- 4013614347917
- Package Level 1 Gross Weight
- 0.325 kg
- Package Level 1 Height
- 106 mm
- Package Level 1 Units
- 1 piece
- Package Level 1 Width
- 81 mm
Dimensions
- Product Net Depth / Length
- 100 mm
- Product Net Height
- 78 mm
- Product Net Weight
- 0.299 kg
- Product Net Width
- 45 mm
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Customs Tariff Number
- 85364900
- EAN
- 4013614347917
- Minimum Order Quantity
- 1 piece
Technical
- Function
- Motor load monitoring
- Measuring Range
- 2-20 A @ 110-500 V AC
- Output
- 2 x 1 c/o (SPDT) contact
- Rated Control Supply Voltage (Us)
- 220 ... 240 V AC
- Rated Frequency (f)
- 50 Hz60 Hz
- Terminal Type
- Screw Terminals
- Time Range
- 0.3 ... 30 s start-up delay0.2 ... 2 s tripping delay
