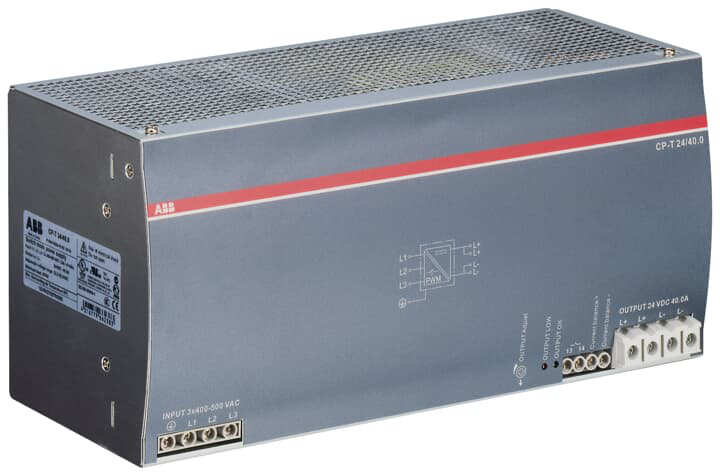

ABB 1SVR427057R0000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
CP-T 24/40.0 Power supply In: 3x400-500VAC Out: 24VDC/40.0ACP-T 24/40.0 Power supply In: 3x400-500VAC Out: 24VDC/40.0A
ABB 1SVR427057R0000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27040701
- E-Number (Finland)
- 2712075
- E-Number (Sweden)
- 5218723
- ETIM 4
- EC002540 - DC-power supply
- ETIM 5
- EC002540 - DC-power supply
- Object Classification Code
- T
Dimensions
- Product Net Depth / Length
- 121 mm
- Product Net Height
- 131 mm
- Product Net Weight
- 3.275 kg
- Product Net Width
- 276 mm
Electromagnetic Compatibility
- Conducted Disturbances Immunity acc. to IEC 61000-4-6
- Level 3 10 V
- Electrical Fast Transient (Burst Immunity) acc. to IEC 61000-4-4
- Level 4 Power Supply Port Signal 4 kV
- Electromagnetic Compatibility (EMC)
- Immunity - Class BEmission - Environment B
- Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2
- Level 4 Air Discharge 15 kVLevel 4 Contact Discharge 8 kV
- Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3
- Level 3 10 V/m
- Surge Immunity acc. to IEC 61000-4-5
- Level 3 Line-to-Line 2 kVLevel 4 Line-to-Line 4 kV
Environmental
- Ambient Air Temperature
- Operation -40 ... +70 °CStorage -40 ... +85 °C
- Maximum Operating Altitude Permissible
- 5000 m
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Customs Tariff Number
- 85044095
- Minimum Order Quantity
- 1 piece
Technical
- Characteristic of Output
- Hiccup-mode
- Connecting Capacity Input Circuit
- Flexible with Ferrule 0.2 ... 4 mm²Rigid 0.2 ... 6 mm²
- Connecting Capacity Output Circuit
- Flexible with Ferrule 0.5 ... 10 mm²Rigid 0.5 ... 16 mm²
- Degree of Protection
- Housing IP20Terminals IP20
- Function
- Switch mode power supply
- Input Voltage (Uin)
- 3 x 340 ... 575 V AC480 ... 820 V DC
- Minimum Mounting Distance
- Electrical Conductive Board, Horizontal 25 mmElectrical Conductive Board, Vertical 25 mmOther Device Same Type, Horizontal 25 mmOther Device Same Type, Vertical 25 mm
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position
- 1
- Number of Phases
- 3
- Output Current
- 40 A
- Output Power
- 960 W
- Output Voltage (Uout)
- 24 V DC
- Pollution Degree
- 2
- Rated Frequency (f)
- 50 Hz
- Rated Frequency Limits
- 47 ... 63 Hz
- Rated Impulse Withstand Voltage (Uimp)
- Input Circuit / Output Circuit 6 kVInput Circuit / PE 4 kVInput Circuit / Relay Contact 4 kVOutput Circuit / PE 0.8 kV
- Rated Input Voltage (UIN)
- 3x 400 ... 500 V AC
- Rated Insulation Voltage (Ui)
- Input Circuit / Output Circuit 500 VInput Circuit / PE 500 VInput Circuit / Relay Contact 500 VOutput Circuit / PE 50 V
- Rated Output Current
- 40 A
- Rated Output Power
- 960 W
- Rated Output Voltage
- 24 V DC
- Recommended Screw Driver
- PH2
- Standards
- ANSI/ISA-12.12CAN/CSA C22.2 No.107.1CAN/CSA C22.2 No.213CAN/CSA C22.2 No.60950IEC/EN 63000IEC 60950-1IEC/EN 61000-6-2IEC/EN 61000-6-3UL 508UL 60950
- Tightening Torque
- Auxiliary Circuit 0.6 N·mInput Circuit 1 N·mOutput Circuit 1.8 N·m
- Wire Stripping Length
- Auxiliary Circuit 8 mmInput Circuit 8 mmOutput Circuit 10 mm
Technical UL/CSA
- Connecting Capacity Input Circuit UL/CSA
- Rigid 24-10 AWG
- Connecting Capacity Output Circuit UL/CSA
- Rigid 20-6 AWG
- Tightening Torque UL/CSA
- Input Circuit 9 in·lbOutput Circuit 15.6 in·lb
