ABB 1SVR405541R3210
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

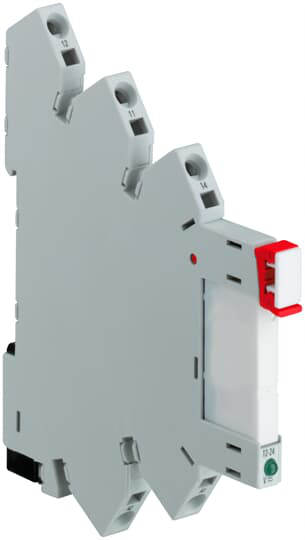

CR-S024VADC1CRZ Interface relay cpl. 1c/o, A1-A2=24VAC/DC, Output=6A/250VAC spring terminalsCR-S024VADC1CRZ Interface relay cpl. 1c/o, A1-A2=24VAC/DC, Output=6A/250VAC
ABB 1SVR405541R3210 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371601
- E-Number (Finland)
- 2712372
- E-Number (Sweden)
- 4001402
- ETIM 9
- EC001437 - Switching relay
- Object Classification Code
- K
Dimensions
- Product Net Depth / Length
- 94.7 mm
- Product Net Height
- 76.6 mm
- Product Net Weight
- 0.03 kg
- Product Net Width
- 6.2 mm
Environmental
- Ambient Air Temperature
- Operation -40 ... +70 °CStorage 0 ... +40 °C
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Customs Tariff Number
- 85364900
- Minimum Order Quantity
- 10 piece
Technical
- Connecting Capacity
- Flexible 2.5 mm²Rigid 2.5 mm²
- Degree of Protection
- Terminals IP20
- Function
- Fully assembled interface relay CR-S
- Mounting on DIN Rail
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Output
- 1 c/o (SPDT) contact
- Output Signal
- 250 V / 6 A
- Rated Control Supply Voltage (Us)
- 24 V AC/DC
- Rated Operational Current AC-12 (Ie)
- (230 V) 6 A
- Rated Operational Current DC-12 (Ie)
- (24 V) 6 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 1 A
- Standards
- CAN/CSA C22.2 No.14IEC/EN 63000IEC/EN 61810-1IEC/EN 61984UL 508
- Sub-Function
- Relay with standard contacts
- Terminal Type
- Spring Terminals
- Tightening Torque
- 0.5 N·m
- Wire Stripping Length
- 7 mm
Technical UL/CSA
- Connecting Capacity UL/CSA
- Flexible 14 AWGRigid 14 AWG
- Tightening Torque UL/CSA
- 4.42 in·lb
