Description

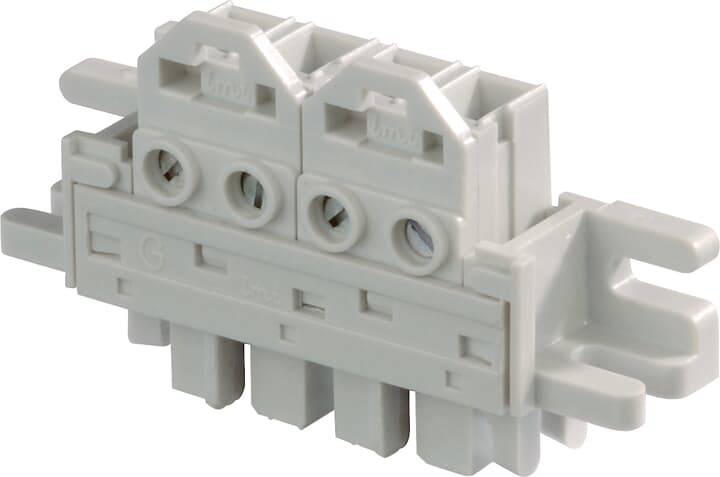

Modular mounting (Panel or through panel).FIC F VIS 12P/7.62 PAR BR Female Plugs
ABB 1SSA207212R3000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC002638 - Cable connector
- ETIM 5
- EC002638 - Cable connector
- ETIM 6
- EC002638 - Cable connector
- Object Classification Code
- X
Container Information
- Package Level 1 Depth / Length
- 225 mm
- Package Level 1 EAN
- 3472599015241
- Package Level 1 Gross Weight
- 1.14 kg
- Package Level 1 Height
- 107 mm
- Package Level 1 Units
- 20 piece
- Package Level 1 Width
- 75 mm
- Package Level 2 Gross Weight
- 15.96 kg
- Package Level 2 Units
- 280 piece
- Package Level 3 Units
- 13440 piece
Dimensions
- Product Net Weight
- 57 g
Ordering
- Color
- Grey
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 20 piece
Technical
- Connecting Capacity Main Circuit
- Screw Clamp / Flexible 1x 4 mm²Screw Clamp / Rigid 1x 4 mm²
- Connection Type
- Screw Clamp
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Function
- Female Plugs
- Pollution Degree
- 3
- Rated Cross-Section
- 4 mm²
- Rated Current (In)
- Main Circuit 25 A
- Rated Short-time Withstand Current (Icw)
- for 1 s 480 A
- Rated Voltage (Ur)
- 380 V
- Recommended Screw Driver
- 3.5 mm
- Spacing
- 7.62 mm
- Tightening Torque
- acc. IEC 60947-1 0.7 N·mManufacturer 0.8 N·m
- Wire Stripping Length
- 10.0 mm
Technical UL/CSA
- Connecting Capacity UL/CSA
- Stranded 12 AWG
- Maximum Operating Voltage UL/CSA
- Main Circuit 300 V
