ABB 1SNK908910R0000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

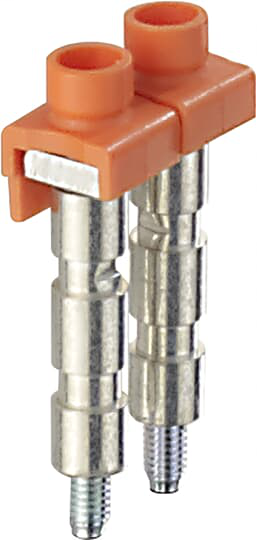

Insulated jumper bar with screw mounting.JB8-10-R1 Jumper Bar - Orange
ABB 1SNK908910R0000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC000489 - Cross-connector for terminal block
- ETIM 5
- EC000489 - Cross-connector for terminal block
- ETIM 6
- EC000489 - Cross-connector for terminal block
- Object Classification Code
- X
Container Information
- Package Level 1 Depth / Length
- 200 mm
- Package Level 1 EAN
- 3472599089105
- Package Level 1 Gross Weight
- 0.39 kg
- Package Level 1 Height
- 20 mm
- Package Level 1 Units
- 10 piece
- Package Level 1 Width
- 155 mm
- Package Level 2 Depth / Length
- 300 mm
- Package Level 2 Gross Weight
- 7.8 kg
- Package Level 2 Height
- 200 mm
- Package Level 2 Units
- 200 piece
- Package Level 2 Width
- 200 mm
- Package Level 3 Units
- 19200 piece
Dimensions
- Product Net Depth / Length
- 32.4 mm
- Product Net Height
- 80.5 mm
- Product Net Length
- 32.4 mm
- Product Net Weight
- 39 g
- Product Net Width
- 8 mm
Environmental
- Ambient Air Temperature
- Operation -55 ... +110 °CStorage -55 ... +110 °C
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Ordering
- Color
- Orange
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 10 piece
Technical
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Function
- Jumper Bars
- Insulation Material
- Polyamide
- Rated Current (In)
- Main Circuit 50 A
- Rated Voltage (Ur)
- 160 V
- Recommended Screw Driver
- 3.5 mm
- Spacing
- 8 mm
- Suitable For
- ZS10-PE-R1ZS10-R1ZS10-ST
Technical UL/CSA
- Flammability According to UL94
- V-0
