ABB 1SNK708010R0000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

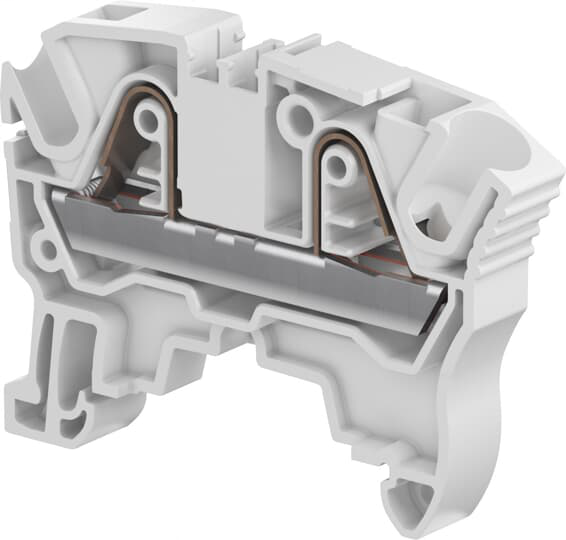

Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.ZK6 PI-Spring clamp Terminal Block - Feed-through - Grey
ABB 1SNK708010R0000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC000897 - Feed-through terminal block
- ETIM 5
- EC000897 - Feed-through terminal block
- ETIM 6
- EC000897 - Feed-through terminal block
- Object Classification Code
- X
Container Information
- Package Level 1 Depth / Length
- 201 mm
- Package Level 1 EAN
- 3472597080104
- Package Level 1 Gross Weight
- 0.64 kg
- Package Level 1 Height
- 46 mm
- Package Level 1 Units
- 50 piece
- Package Level 1 Width
- 119 mm
- Package Level 2 Depth / Length
- 400 mm
- Package Level 2 Gross Weight
- 5.76 kg
- Package Level 2 Height
- 200 mm
- Package Level 2 Units
- 450 piece
- Package Level 2 Width
- 300 mm
- Package Level 3 Units
- 21600 piece
Dimensions
- Product Net Depth / Length
- 41.9 mm
- Product Net Height
- 57.5 mm
- Product Net Length
- 41.9 mm
- Product Net Weight
- 11.8 g
- Product Net Width
- 8 mm
Environmental
- Ambient Air Temperature
- Operation -55 ... +110 °CStorage -55 ... +110 °C
- Resistance to Vibrations acc. to IEC 60068-2-6
- Compliant
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Color
- Grey
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 50 piece
Technical
- Connecting Capacity Main Circuit
- Spring Clamp / Flexible 1x 0.5 ... 6 mm²Spring Clamp / Rigid 1x 0.5 ... 10 mm²Spring Clamp / With Insulated Ferrrule 1x 0.5 ... 6 mm²Spring Clamp / Without Insulated Ferrule 1x 0.5 ... 6 mm²Spring Clamp / With Twin Ferrule 2x 0.5 ... 1.5 mm²
- Connection Type
- PI Spring
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Dielectric Test Voltage
- 2200 V
- Function
- Feed-through
- Gauge Type
- A5 & 3.9 mm Dia.
- Insulation Material
- Polyamide
- Mounting on DIN Rail
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Number of Levels
- 1
- Pollution Degree
- 3
- Power Loss
- 1.3 W
- Rated Cross-Section
- 6 mm²
- Rated Current (In)
- Main Circuit 41 A
- Rated Impulse Withstand Voltage (Uimp)
- 8000 V
- Rated Short-time Withstand Current (Icw)
- for 1 s 720 A
- Rated Voltage (Ur)
- 1000 V
- Spacing
- 8 mm
- Wire Stripping Length
- 12.5 mm
Technical UL/CSA
- Connecting Capacity Main Circuit UL/CSA
- Spring Clamp / Rigid 1x 24 ... 8 AWGSpring Clamp / With Insulated Ferrrule 1x 24 ... 10 AWGSpring Clamp / Without Insulated Ferrule 1x 24 ... 10 AWG
- Connecting Capacity UL/CSA
- Stranded 8 AWG
- Flammability According to UL94
- V-0
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V
- Short-Circuit Current Rating (SCCR)
- 100 kA
