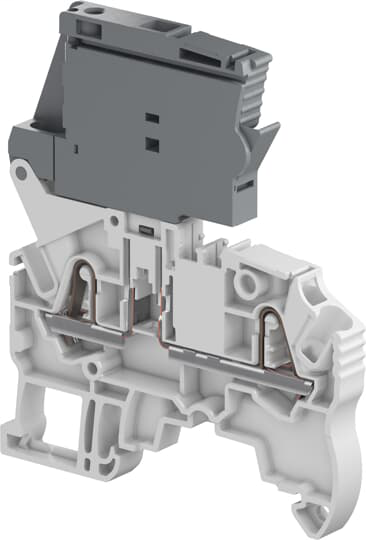

ABB 1SNK706410R0000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Protect your circuits with 5x20 fuse terminal blocks compliant with IEC 60947-7-3 standard (fuse not supplied with the terminal blocks), - Simplify the distribution thanks to the 2 jumper channels aligned with ZK4-3P feed-through and ZK2.5-S-R1 disconnect terminal blocks.ZK2.5-SF PI-Spring Clamp Terminal Block - for Fuses 5x20 mm - Grey
ABB 1SNK706410R0000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC000899 - Fuse terminal block
- ETIM 5
- EC000899 - Fuse terminal block
- ETIM 6
- EC000899 - Fuse terminal block
- Object Classification Code
- X
Container Information
- Package Level 1 Depth / Length
- 151 mm
- Package Level 1 EAN
- 3472597064104
- Package Level 1 Gross Weight
- 0.86 kg
- Package Level 1 Height
- 78 mm
- Package Level 1 Units
- 50 piece
- Package Level 1 Width
- 138 mm
- Package Level 2 Depth / Length
- 400 mm
- Package Level 2 Gross Weight
- 6.88 kg
- Package Level 2 Height
- 200 mm
- Package Level 2 Units
- 400 piece
- Package Level 2 Width
- 300 mm
- Package Level 3 Units
- 19200 piece
Dimensions
- Product Net Depth / Length
- 72.5 mm
- Product Net Height
- 63.1 mm
- Product Net Length
- 72.5 mm
- Product Net Weight
- 16.2 g
- Product Net Width
- 6 mm
Environmental
- Ambient Air Temperature
- Operation -55 ... +110 °CStorage -55 ... +110 °C
- Resistance to Vibrations acc. to IEC 60068-2-6
- Compliant
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Color
- Grey, Dark Grey
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 50 piece
Technical
- Connecting Capacity Main Circuit
- Spring Clamp / Flexible 1x 0.22 ... 2.5 mm²Spring Clamp / Rigid 1x 0.2 ... 4 mm²Spring Clamp / With Insulated Ferrrule 1x 0.22 ... 2.5 mm²Spring Clamp / Without Insulated Ferrule 1x 0.22 ... 2.5 mm²Spring Clamp / With Twin Ferrule 2x 0.22 ... 0.5 mm²
- Connection Type
- PI Spring
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Function
- Fuse
- Gauge Type
- A2 / 2.3 mm Dia.
- Insulation Material
- Polyamide
- Mounting on DIN Rail
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Number of Levels
- 1
- Pollution Degree
- 3
- Power Loss
- 1.6 W
- Rated Cross-Section
- 2.5 mm²
- Rated Current (In)
- Main Circuit 6.3 A
- Rated Impulse Withstand Voltage (Uimp)
- 6000 V
- Rated Voltage (Ur)
- 500 V
- Spacing
- 6 mm
- Wire Stripping Length
- 11.0 mm
Technical UL/CSA
- Connecting Capacity Main Circuit UL/CSA
- Spring Clamp / Rigid 1x 26 ... 12 AWGSpring Clamp / With Insulated Ferrrule 1x 26 ... 14 AWGSpring Clamp / Without Insulated Ferrule 1x 26 ... 14 AWG
- Connecting Capacity UL/CSA
- Stranded 12 AWG
- Flammability According to UL94
- V-0
- Maximum Operating Voltage UL/CSA
- Main Circuit 300 V
