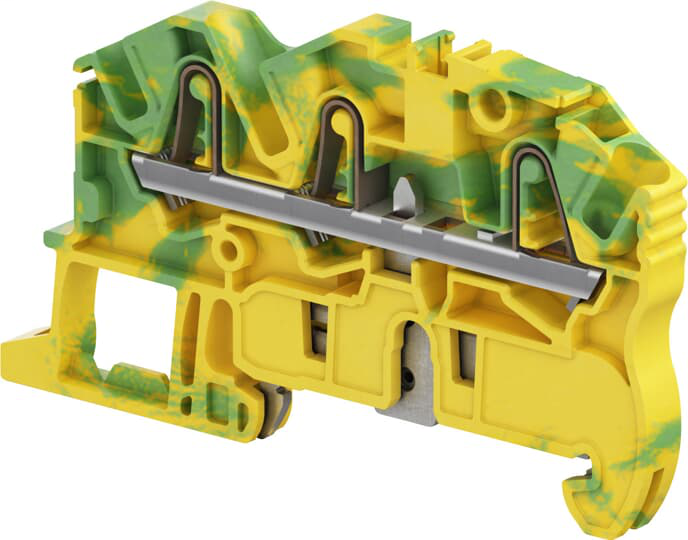

ABB 1SNK705151R0000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent, - Performances above the requirements of the IEC 60947-7-2 terminal block standard, - Secured snap on or off the rail, - Profile aligned with ZK2.5-3P.ZK2.5-PE-3P PI-Spring clamp Terminal Block - Ground - Green Yellow
ABB 1SNK705151R0000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC000901 - Ground terminal block
- ETIM 5
- EC000901 - Ground terminal block
- ETIM 6
- EC000901 - Ground terminal block
- Object Classification Code
- X
Container Information
- Package Level 1 Depth / Length
- 145 mm
- Package Level 1 EAN
- 3472597051517
- Package Level 1 Gross Weight
- 0.258 kg
- Package Level 1 Height
- 42 mm
- Package Level 1 Units
- 20 piece
- Package Level 1 Width
- 54 mm
- Package Level 2 Depth / Length
- 400 mm
- Package Level 2 Gross Weight
- 8.256 kg
- Package Level 2 Height
- 200 mm
- Package Level 2 Units
- 640 piece
- Package Level 2 Width
- 300 mm
- Package Level 3 Units
- 30720 piece
Dimensions
- Product Net Depth / Length
- 40.3 mm
- Product Net Height
- 71.2 mm
- Product Net Length
- 40.3 mm
- Product Net Weight
- 11.9 g
- Product Net Width
- 5.2 mm
Environmental
- Ambient Air Temperature
- Operation -55 ... +110 °CStorage -55 ... +110 °C
- Resistance to Vibrations acc. to IEC 60068-2-6
- Compliant
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Color
- Green-Yellow
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 20 piece
Technical
- Connecting Capacity Main Circuit
- Spring Clamp / Flexible 1x 0.22 ... 2.5 mm²Spring Clamp / Rigid 1x 0.2 ... 4 mm²Spring Clamp / With Insulated Ferrrule 1x 0.22 ... 2.5 mm²Spring Clamp / Without Insulated Ferrule 1x 0.22 ... 2.5 mm²
- Connection Type
- PI Spring
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Dielectric Test Voltage
- 2200 V
- Function
- Ground
- Gauge Type
- A2 / 2.3 mm Dia.
- Insulation Material
- Polyamide
- Mounting on DIN Rail
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Number of Levels
- 1
- Pollution Degree
- 3
- Rated Cross-Section
- 2.5 mm²
- Rated Impulse Withstand Voltage (Uimp)
- 8000 V
- Rated Short-time Withstand Current (Icw)
- for 1 s 300 A
- Spacing
- 5.2 mm
- Wire Stripping Length
- 11.0 mm
Technical UL/CSA
- Connecting Capacity Main Circuit UL/CSA
- Spring Clamp / Rigid 1x 26 ... 12 AWGSpring Clamp / With Insulated Ferrrule 1x 26 ... 14 AWGSpring Clamp / Without Insulated Ferrule 1x 26 ... 14 AWG
- Connecting Capacity UL/CSA
- Stranded 12 AWG
- Flammability According to UL94
- V-0
