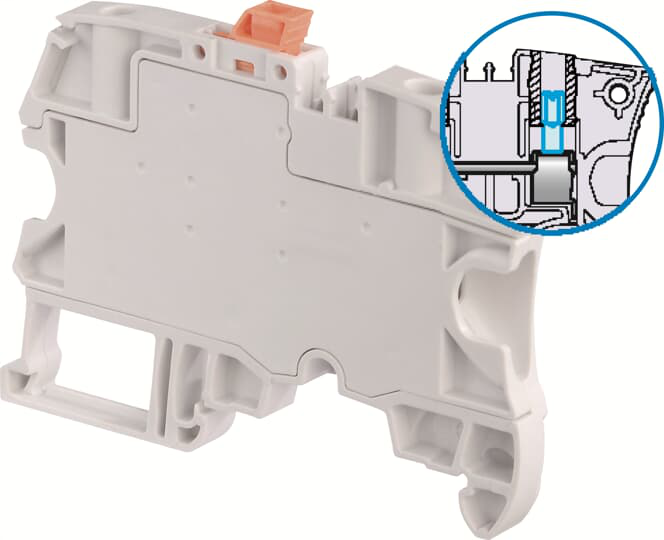

ABB 1SNK506331R0000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Ease your test operations with the 2 built-in test sockets, - Screwdriver or hand operated disconnect blade, - Simplify the alternated distribution thanks to the two jumper channels aligned with ZS4 feed-through terminal blocks.ZS4-S-T2-R1-OR Screw Clamp Terminal Block - Disconnect with blade - Orange - with 2 test socket screws DIA 2 mm 0.079 in
ABB 1SNK506331R0000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC000902 - (Knife) disconnect terminal block
- ETIM 5
- EC000902 - (Knife) disconnect terminal block
- ETIM 6
- EC000902 - (Knife) disconnect terminal block
- Object Classification Code
- X
Container Information
- Package Level 1 Depth / Length
- 339 mm
- Package Level 1 EAN
- 3472595063314
- Package Level 1 Gross Weight
- 0.725 kg
- Package Level 1 Height
- 52 mm
- Package Level 1 Units
- 50 piece
- Package Level 1 Width
- 61 mm
- Package Level 2 Depth / Length
- 400 mm
- Package Level 2 Gross Weight
- 8.7 kg
- Package Level 2 Height
- 200 mm
- Package Level 2 Units
- 600 piece
- Package Level 2 Width
- 300 mm
- Package Level 3 Units
- 28800 piece
Dimensions
- Product Net Depth / Length
- 51.4 mm
- Product Net Height
- 70.5 mm
- Product Net Length
- 51.35 mm
- Product Net Weight
- 14.2 g
- Product Net Width
- 6 mm
Environmental
- Ambient Air Temperature
- Operation -55 ... +110 °CStorage -55 ... +110 °C
- Resistance to Vibrations acc. to IEC 60068-2-6
- Compliant
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Ordering
- Color
- Orange
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 50 piece
Technical
- Connecting Capacity Main Circuit
- Screw Clamp / Flexible 1x 0.22 ... 4 mm²Screw Clamp / Flexible 2x 0.2 ... 1.5 mm²Screw Clamp / Rigid 1x 0.2 ... 4 mm²Screw Clamp / Rigid 2x 0.2 ... 1.5 mm²Screw Clamp / With Insulated Ferrrule 1x 0.22 ... 4 mm²Screw Clamp / Without Insulated Ferrule 1x 0.22 ... 4 mm²Screw Clamp / With Twin Ferrule 2x 0.22 ... 1.5 mm²
- Connection Type
- Screw Clamp
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Dielectric Test Voltage
- 1890 V
- Function
- Disconnect
- Gauge Type
- A3-B3
- Insulation Material
- Polyamide
- Mounting on DIN Rail
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Number of Levels
- 1
- Pollution Degree
- 3
- Power Loss
- 0.8 W
- Rated Cross-Section
- 4 mm²
- Rated Current (In)
- Main Circuit 26 A
- Rated Impulse Withstand Voltage (Uimp)
- 6000 V
- Rated Short-time Withstand Current (Icw)
- for 1 s 480 A
- Rated Voltage (Ur)
- 400 V
- Recommended Screw Driver
- 3.5 mm
- Spacing
- 6 mm
- Wire Stripping Length
- 10.5 mm
Technical UL/CSA
- Connecting Capacity Main Circuit UL/CSA
- Screw Clamp / Flexible 1x 24 ... 10 AWGScrew Clamp / Flexible 2x 24 ... 16 AWGScrew Clamp / Rigid 1x 24 ... 10 AWGScrew Clamp / Rigid 2x 24 ... 16 AWGScrew Clamp / With Insulated Ferrrule 1x 24 ... 12 AWGScrew Clamp / Without Insulated Ferrule 1x 24 ... 12 AWGScrew Clamp / With Twin Ferrule 2x 24 ... 16 AWG
- Connecting Capacity UL/CSA
- Stranded 10 AWG
- Flammability According to UL94
- V-0
- Maximum Operating Voltage UL/CSA
- Main Circuit 150 V
