ABB 1SNA400772R1300
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

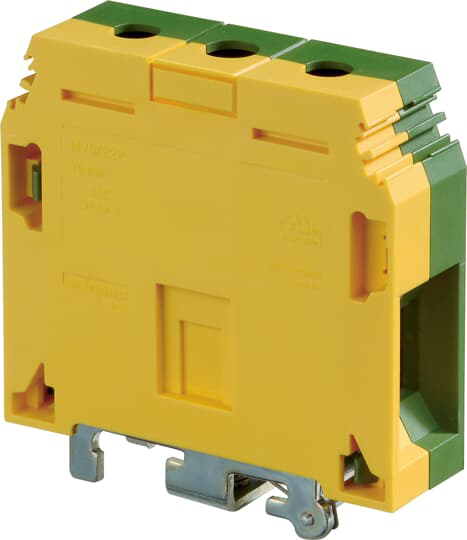

Reliable electrical and mechanical contact with the rail.D70/22.P Screw Clamp Terminal Blocks - Ground - Green-Yellow
ABB 1SNA400772R1300 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC000901 - Ground terminal block
- ETIM 5
- EC000901 - Ground terminal block
- ETIM 6
- EC000901 - Ground terminal block
- Object Classification Code
- X
Container Information
- Package Level 1 Depth / Length
- 175 mm
- Package Level 1 EAN
- 3472594007722
- Package Level 1 Gross Weight
- 2.22 kg
- Package Level 1 Height
- 74 mm
- Package Level 1 Units
- 10 piece
- Package Level 1 Width
- 135 mm
- Package Level 2 Depth / Length
- 500 mm
- Package Level 2 Gross Weight
- 17.76 kg
- Package Level 2 Height
- 150 mm
- Package Level 2 Units
- 80 piece
- Package Level 2 Width
- 300 mm
- Package Level 3 Units
- 3840 piece
Dimensions
- Product Net Depth / Length
- 68.8 mm
- Product Net Height
- 74 mm
- Product Net Weight
- 222 g
- Product Net Width
- 22 mm
Environmental
- Ambient Air Temperature
- Operation -55 ... +110 °CStorage -55 ... +110 °C
- Resistance to Vibrations acc. to IEC 60068-2-6
- Compliant
Ordering
- Color
- Green-Yellow
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 10 piece
Technical
- Connecting Capacity Main Circuit
- Screw Clamp / Flexible 1x 16 ... 70 mm²Screw Clamp / Rigid 1x 16 ... 95 mm²Screw Clamp / With Insulated Ferrrule 1x 50 mm²
- Connection Type
- Screw Clamp
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
- Dielectric Test Voltage
- 2200 V
- Function
- Ground
- Gauge Type
- B11
- Insulation Material
- Polyamide
- Mounting on DIN Rail
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Number of Levels
- 1
- Pollution Degree
- 3
- Rated Cross-Section
- 70 mm²
- Rated Impulse Withstand Voltage (Uimp)
- 8000 V
- Rated Short-time Withstand Current (Icw)
- for 1 s 8400 A
- Recommended Screw Driver
- 6 mm
- Spacing
- 22 mm
- Tightening Torque
- acc. IEC 60947-1 6 N·mManufacturer 7 N·m
- Wire Stripping Length
- 25.0 mm
Technical UL/CSA
- Connecting Capacity Main Circuit UL/CSA
- Screw Clamp / Flexible 1x 4 ... 00 AWGScrew Clamp / Rigid 1x 4 ... 00 AWGScrew Clamp / With Insulated Ferrrule 1x 2 ... 0 AWG
- Connecting Capacity UL/CSA
- Screw Clamp / Rigid 4 ... 00 AWGStranded 0 AWG
- Flammability According to UL94
- V-0
