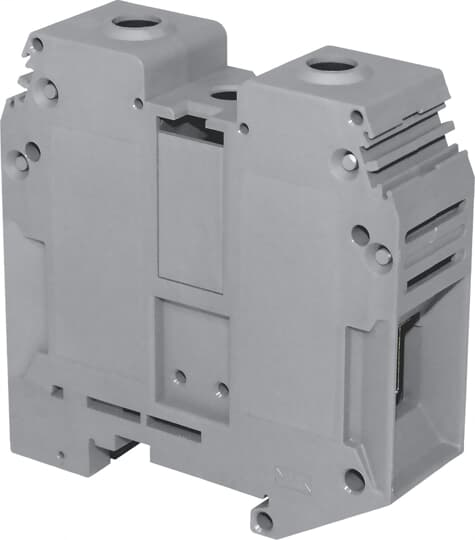

ABB 1SNA400305R1000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Closed terminal block: no end section needed, optimized rigidity.D70/22 Screw Clamp Terminal Blocks - Feed-through - Grey
ABB 1SNA400305R1000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC000897 - Feed-through terminal block
- ETIM 5
- EC000897 - Feed-through terminal block
- ETIM 6
- EC000897 - Feed-through terminal block
- Object Classification Code
- X
Container Information
- Package Level 1 Depth / Length
- 151 mm
- Package Level 1 EAN
- 3472594003052
- Package Level 1 Gross Weight
- 1.581 kg
- Package Level 1 Height
- 78 mm
- Package Level 1 Units
- 10 piece
- Package Level 1 Width
- 138 mm
- Package Level 2 Depth / Length
- 300 mm
- Package Level 2 Gross Weight
- 4.743 kg
- Package Level 2 Height
- 200 mm
- Package Level 2 Units
- 30 piece
- Package Level 2 Width
- 200 mm
- Package Level 3 Units
- 3840 piece
Dimensions
- Product Net Depth / Length
- 75.4 mm
- Product Net Height
- 74 mm
- Product Net Weight
- 158.1 g
- Product Net Width
- 22 mm
Environmental
- Ambient Air Temperature
- Operation -55 ... +110 °CStorage -55 ... +110 °C
- Resistance to Vibrations acc. to IEC 60068-2-6
- Compliant
Ordering
- Color
- Grey
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 10 piece
Technical
- Connecting Capacity Main Circuit
- Screw Clamp / Flexible 1x 16 ... 70 mm²Screw Clamp / Flexible 2x 25 ... 35 mm²Screw Clamp / Rigid 1x 16 ... 95 mm²Screw Clamp / Rigid 2x 25 ... 35 mm²Screw Clamp / With Insulated Ferrrule 1x 50 mm²
- Connection Type
- Screw Clamp
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Dielectric Test Voltage
- 2200 V
- Function
- Feed-through
- Gauge Type
- B11
- Insulation Material
- Polyamide
- Mounting on DIN Rail
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Number of Levels
- 1
- Pollution Degree
- 3
- Power Loss
- 6.1 W
- Rated Cross-Section
- 70 mm²
- Rated Current (In)
- Main Circuit 192 A
- Rated Impulse Withstand Voltage (Uimp)
- 8000 V
- Rated Short-time Withstand Current (Icw)
- for 1 s 8400 A
- Rated Voltage (Ur)
- 1000 V
- Recommended Screw Driver
- 6 mm
- Spacing
- 22 mm
- Tightening Torque
- acc. IEC 60947-1 6 N·mManufacturer 7 N·m
- Wire Stripping Length
- 25.0 mm
Technical UL/CSA
- Connecting Capacity Main Circuit UL/CSA
- Screw Clamp / Flexible 1x 4 ... 00 AWGScrew Clamp / Rigid 1x 4 ... 00 AWG
- Connecting Capacity UL/CSA
- Stranded 0 AWG
- Flammability According to UL94
- V-0
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V
