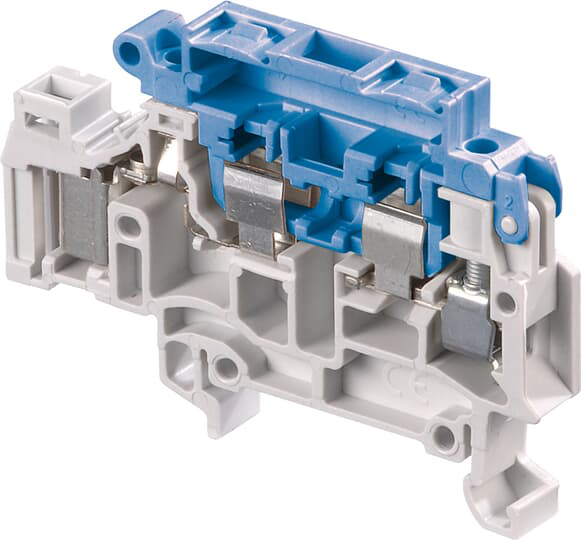

ABB 1SNA399779R2400
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Disconnect terminal blocks aligned with fuse holder terminal blocks, - With the ABB ADO System®, experience the fastest and most reliable connection on the market, - This solution brings all the benefits of the ADO System® and allows installators to connect on standard screw clamp, - Up to 2 wires per connection.D4/8.SNNT2.I.ADO IDC Terminal Blocks - Disconnect with lever - with test socket - ADO - screw clamp - Grey, Blue
ABB 1SNA399779R2400 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC000902 - (Knife) disconnect terminal block
- ETIM 5
- EC000902 - (Knife) disconnect terminal block
- ETIM 6
- EC000902 - (Knife) disconnect terminal block
- Object Classification Code
- X
Container Information
- Package Level 1 Depth / Length
- 225 mm
- Package Level 1 EAN
- 3472593997796
- Package Level 1 Gross Weight
- 0.65 kg
- Package Level 1 Height
- 107 mm
- Package Level 1 Units
- 50 piece
- Package Level 1 Width
- 75 mm
- Package Level 2 Depth / Length
- 500 mm
- Package Level 2 Gross Weight
- 9.1 kg
- Package Level 2 Height
- 300 mm
- Package Level 2 Units
- 700 piece
- Package Level 2 Width
- 300 mm
- Package Level 3 Units
- 16800 piece
Dimensions
- Product Net Depth / Length
- 40.9 mm
- Product Net Height
- 68.2 mm
- Product Net Weight
- 13 g
- Product Net Width
- 8 mm
Environmental
- Ambient Air Temperature
- Operation -55 ... +110 °CStorage -55 ... +110 °C
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Ordering
- Color
- Grey, Blue
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 50 piece
Technical
- Connecting Capacity Main Circuit
- Screw Clamp / Flexible 1x 0.22 ... 4 mm²Screw Clamp / Rigid 1x 0.2 ... 4 mm²
- Connection Type
- Screw Clamp - ADO System
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Function
- Disconnect
- Gauge Type
- A4
- Insulation Material
- Polyamide
- Mounting on DIN Rail
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Number of Levels
- 1
- Pollution Degree
- 3
- Rated Cross-Section
- 1.5 mm²
- Rated Current (In)
- Main Circuit 10 A
- Rated Impulse Withstand Voltage (Uimp)
- 8000 V
- Rated Short-time Withstand Current (Icw)
- for 1 s 180 A
- Rated Voltage (Ur)
- 630 V
- Recommended Screw Driver
- 4 mm
- Spacing
- 8 mm
- Tightening Torque
- acc. IEC 60947-1 0.5 N·mManufacturer 0.8 N·m
- Wire Stripping Length
- 9.5 mm
Technical UL/CSA
- Connecting Capacity Main Circuit UL/CSA
- Screw Clamp / Flexible 1x 22 ... 10 AWG
- Connecting Capacity UL/CSA
- Stranded 16 AWG
