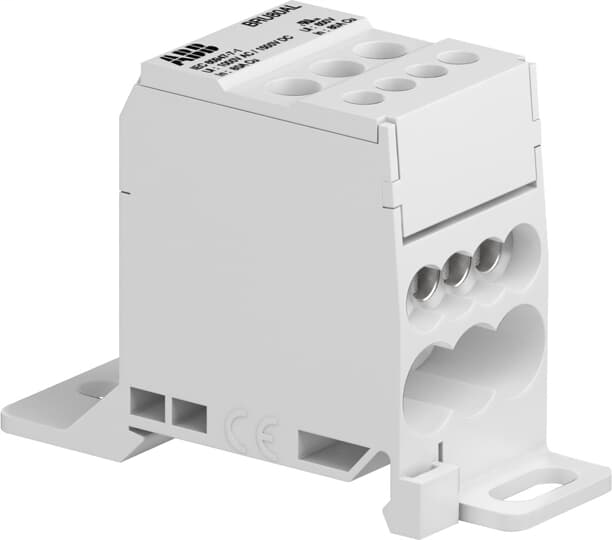

ABB 1SNA356208R2500
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Save installation time with our modular solutions, - Ease the installation with plate or rail mounting options on our modular blocks.BRU80AL Distribution Terminal Blocks
ABB 1SNA356208R2500 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC000276 - Distribution terminal block
- ETIM 5
- EC000276 - Distribution terminal block
- ETIM 6
- EC000276 - Distribution terminal block
- Object Classification Code
- X
Container Information
- Package Level 1 Depth / Length
- 27.2 mm
- Package Level 1 EAN
- 3472593562086
- Package Level 1 Gross Weight
- 0.072 kg
- Package Level 1 Units
- 1 piece
- Package Level 2 Gross Weight
- 1.8 kg
- Package Level 2 Units
- 25 piece
- Package Level 3 Units
- 5200 piece
Dimensions
- Product Net Depth / Length
- 41.5 mm
- Product Net Height
- 66 mm
- Product Net Weight
- 72 g
- Product Net Width
- 27.2 mm
Environmental
- Ambient Air Temperature
- Operation -30 ... +90 °CStorage -30 ... +100 °C
Ordering
- Color
- Grey
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 1 piece
Technical
- Connecting Capacity Main Circuit
- Screw Clamp / Rigid 1x 2.5 ... 25 mm²
- Connection Type
- Screw Clamp
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Function
- Feed-through
- Mounting on DIN Rail
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Number of Levels
- 1
- Rated Cross-Section
- 16 mm²
- Rated Short-time Withstand Current (Icw)
- for 1 s 1.9 A
- Spacing
- 27 mm
- Tightening Torque
- Main Circuit 1.5 ... 3 N·m
- Wire Stripping Length
- 15.0 mm
Technical UL/CSA
- Connecting Capacity UL/CSA
- Stranded 4 AWG
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V
- Short-Circuit Current Rating (SCCR)
- 100 kA
