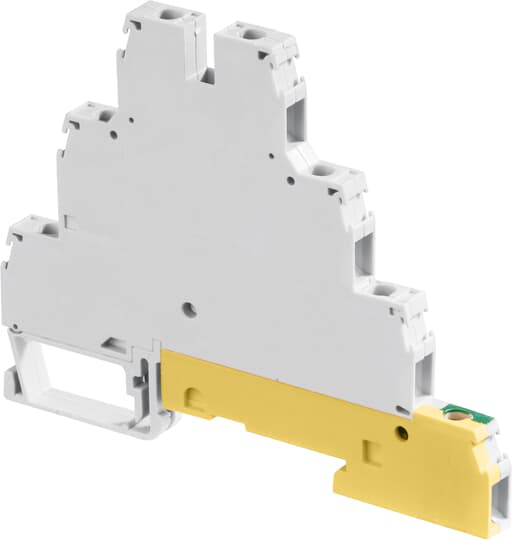

ABB 1SNA299684R0200
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Save space with triple deck terminal blocks: 4 independent circuits connected in just 6 mm 0.236 in spacing., - Closed terminal block: no end section needed, optimized rigidity.D4/6.T3.P Screw Clamp Terminal Blocks - Triple deck + Ground - Grey
ABB 1SNA299684R0200 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC000897 - Feed-through terminal block
- ETIM 5
- EC000897 - Feed-through terminal block
- ETIM 6
- EC000897 - Feed-through terminal block
- Object Classification Code
- X
Container Information
- Package Level 1 Depth / Length
- 117 mm
- Package Level 1 EAN
- 3472592996844
- Package Level 1 Gross Weight
- 0.75 kg
- Package Level 1 Height
- 97 mm
- Package Level 1 Units
- 25 piece
- Package Level 1 Width
- 147 mm
- Package Level 2 Depth / Length
- 500 mm
- Package Level 2 Gross Weight
- 11.25 kg
- Package Level 2 Height
- 300 mm
- Package Level 2 Units
- 375 piece
- Package Level 2 Width
- 300 mm
- Package Level 3 Units
- 9000 piece
Dimensions
- Product Net Depth / Length
- 64.5 mm
- Product Net Height
- 90 mm
- Product Net Weight
- 30 g
- Product Net Width
- 6 mm
Environmental
- Ambient Air Temperature
- Operation -55 ... +110 °CStorage -55 ... +110 °C
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Ordering
- Color
- Grey
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 25 piece
Technical
- Connecting Capacity Main Circuit
- Screw Clamp / Flexible 1x 0.22 ... 4 mm²Screw Clamp / Rigid 1x 0.2 ... 4 mm²
- Connection Type
- Screw Clamp
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Function
- Feed-through + Ground
- Gauge Type
- A4
- Insulation Material
- Polyamide
- Mounting on DIN Rail
- G32 (32 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Number of Levels
- 3
- Pollution Degree
- 3
- Rated Cross-Section
- 4 mm²
- Rated Current (In)
- Main Circuit 32 A
- Rated Impulse Withstand Voltage (Uimp)
- 6000 V
- Rated Short-time Withstand Current (Icw)
- for 1 s 480 A
- Rated Voltage (Ur)
- 500 V
- Recommended Screw Driver
- 4 mm
- Spacing
- 6 mm
- Tightening Torque
- acc. IEC 60947-1 0.5 N·mManufacturer 0.8 N·m
- Wire Stripping Length
- 9.5 mm
Technical UL/CSA
- Connecting Capacity Main Circuit UL/CSA
- Screw Clamp / Rigid 1x 22 ... 12 AWG
- Connecting Capacity UL/CSA
- Screw Clamp / Rigid 22 ... 12 AWGStranded 12 AWG
- Flammability According to UL94
- V-0
- Maximum Operating Voltage UL/CSA
- Main Circuit 300 V
