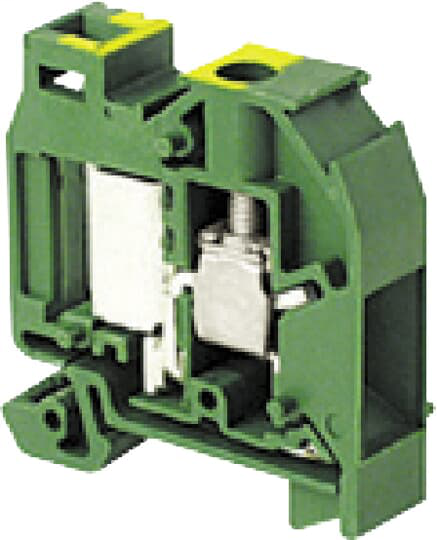

ABB 1SNA299632R0500
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The mini blocks are particularly designed for applications where space is very restricted, - Protect your installation in the event of a short-circuit thanks to our screwless rail contact non operator dependent, - Secure mounting or removal from the rail, - This solution brings all the benefits of the ADO System® and allows installators to connect on standard screw clamp, - Up to 2 wires per connection in the ADO System® connection.DR4/8.P.ADO IDC Terminal Blocks - Miniblocks ADO - screw clamp - Green-Yellow
ABB 1SNA299632R0500 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC000901 - Ground terminal block
- ETIM 5
- EC000901 - Ground terminal block
- ETIM 6
- EC000901 - Ground terminal block
- Object Classification Code
- X
Container Information
- Package Level 1 Depth / Length
- 200 mm
- Package Level 1 EAN
- 3472592996325
- Package Level 1 Gross Weight
- 0.8 kg
- Package Level 1 Height
- 75 mm
- Package Level 1 Units
- 100 piece
- Package Level 1 Width
- 176 mm
- Package Level 2 Depth / Length
- 500 mm
- Package Level 2 Gross Weight
- 7.2 kg
- Package Level 2 Height
- 300 mm
- Package Level 2 Units
- 900 piece
- Package Level 2 Width
- 300 mm
- Package Level 3 Units
- 21600 piece
Dimensions
- Product Net Depth / Length
- 28 mm
- Product Net Height
- 32 mm
- Product Net Weight
- 8 g
- Product Net Width
- 8 mm
Environmental
- Ambient Air Temperature
- Operation -55 ... +110 °CStorage -55 ... +110 °C
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Ordering
- Color
- Green-Yellow
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 100 piece
Technical
- Connecting Capacity Main Circuit
- Screw Clamp / Flexible 1x 0.22 ... 4 mm²Screw Clamp / Rigid 1x 0.2 ... 4 mm²
- Connection Type
- Screw Clamp - ADO System
- Function
- Miniblock
- Gauge Type
- A4
- Insulation Material
- Polyamide
- Mounting on DIN Rail
- TH15-5.5 (15 x 5.5 mm Mounting Rail) acc. to IEC 60715
- Number of Levels
- 1
- Pollution Degree
- 3
- Rated Cross-Section
- 2.5 mm²
- Rated Short-time Withstand Current (Icw)
- for 1 s 300 A
- Recommended Screw Driver
- 4 mm
- Spacing
- 8 mm
- Tightening Torque
- acc. IEC 60947-1 0.5 N·mManufacturer 0.8 N·m
- Wire Stripping Length
- 9.5 mm
Technical UL/CSA
- Flammability According to UL94
- V-0
