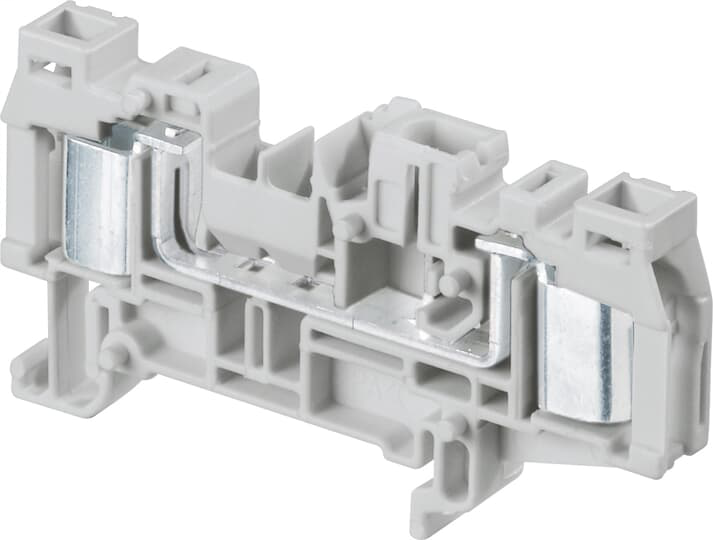

ABB 1SNA290487R2000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Disconnect terminal blocks allow easy opening, maintenance and current or voltage testing without disconnecting the wiring, - With the ABB ADO System®, experience the fastest and most reliable connection on the market, - Designed for control applications exposed to severe constrains (vibrations, shocks, corrosion etc.), - Up to 2 wires per connection.D1.5/7.2ADO-CPE
ABB 1SNA290487R2000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC000897 - Feed-through terminal block
- ETIM 5
- EC000897 - Feed-through terminal block
- ETIM 6
- EC000897 - Feed-through terminal block
- Object Classification Code
- X
Container Information
- Package Level 1 Depth / Length
- 216 mm
- Package Level 1 EAN
- 3472592904870
- Package Level 1 Gross Weight
- 0.55 kg
- Package Level 1 Height
- 62 mm
- Package Level 1 Units
- 50 piece
- Package Level 1 Width
- 152 mm
- Package Level 2 Depth / Length
- 500 mm
- Package Level 2 Gross Weight
- 4.95 kg
- Package Level 2 Height
- 150 mm
- Package Level 2 Units
- 450 piece
- Package Level 2 Width
- 300 mm
- Package Level 3 Units
- 21600 piece
Dimensions
- Product Net Depth / Length
- 29 mm
- Product Net Height
- 65.5 mm
- Product Net Weight
- 11 g
- Product Net Width
- 7.6 mm
Environmental
- Ambient Air Temperature
- Operation -55 ... +110 °CStorage -55 ... +110 °C
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Ordering
- Color
- Grey
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 50 piece
Technical
- Connection Type
- Pluggable - ADO System
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Function
- Feed-through
- Insulation Material
- Polyamide
- Mounting on DIN Rail
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Number of Levels
- 1
- Pollution Degree
- 3
- Rated Cross-Section
- 1.5 mm²
- Rated Current (In)
- Main Circuit 16 A
- Rated Short-time Withstand Current (Icw)
- for 1 s 180 A
- Rated Voltage (Ur)
- 500 V
- Spacing
- 7.62 mm
Technical UL/CSA
- Connecting Capacity UL/CSA
- Stranded 16 AWG
- Maximum Operating Voltage UL/CSA
- Main Circuit 300 V
