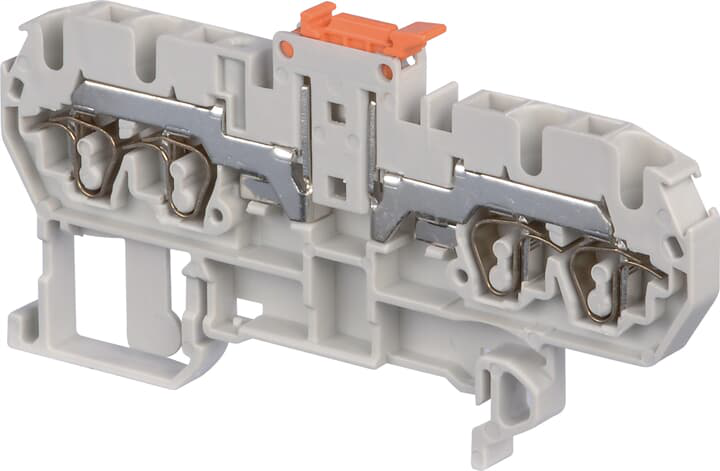

ABB 1SNA290141R0400
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Ease your disconnect operations with the disconnect knife blade operated by hand, - two interconnections on one side, one interconnection and one test point on the other side, - Easy to access thanks to the front wiring entry, - Clamping contact pressure non dependent on the operator and automatic creeping compensation.D2.5/5.SNB.4L Spring Terminal Blocks - Disconnect with blade - Grey, Orange
ABB 1SNA290141R0400 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC000902 - (Knife) disconnect terminal block
- ETIM 5
- EC000902 - (Knife) disconnect terminal block
- ETIM 6
- EC000902 - (Knife) disconnect terminal block
- Object Classification Code
- X
Container Information
- Package Level 1 Depth / Length
- 220 mm
- Package Level 1 EAN
- 3472592901411
- Package Level 1 Gross Weight
- 0.5 kg
- Package Level 1 Height
- 47 mm
- Package Level 1 Units
- 50 piece
- Package Level 1 Width
- 101 mm
- Package Level 2 Depth / Length
- 500 mm
- Package Level 2 Gross Weight
- 5 kg
- Package Level 2 Height
- 150 mm
- Package Level 2 Units
- 500 piece
- Package Level 2 Width
- 300 mm
- Package Level 3 Units
- 24000 piece
Dimensions
- Product Net Depth / Length
- 36.5 mm
- Product Net Height
- 80 mm
- Product Net Weight
- 10 g
- Product Net Width
- 5 mm
Environmental
- Ambient Air Temperature
- Operation -55 ... +110 °CStorage -55 ... +110 °C
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Ordering
- Color
- Grey, Orange
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 50 piece
Technical
- Connecting Capacity Main Circuit
- Spring Clamp / Flexible 1x 0.12 ... 2.5 mm²Spring Clamp / Rigid 1x 0.12 ... 4 mm²Spring Clamp / With Insulated Ferrrule 1x 0.5 ... 1.5 mm²
- Connection Type
- Spring
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Function
- Disconnect
- Gauge Type
- A2
- Insulation Material
- Polyamide
- Mounting on DIN Rail
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Number of Levels
- 1
- Pollution Degree
- 3
- Rated Cross-Section
- 2.5 mm²
- Rated Current (In)
- Main Circuit 10 A
- Rated Impulse Withstand Voltage (Uimp)
- 6000 V
- Rated Short-time Withstand Current (Icw)
- for 1 s 120 A
- Rated Voltage (Ur)
- 500 V
- Recommended Screw Driver
- 3.5 mm
- Spacing
- 5 mm
- Wire Stripping Length
- 9.5 mm
Technical UL/CSA
- Connecting Capacity UL/CSA
- Stranded 12 AWG
- Flammability According to UL94
- V-0
