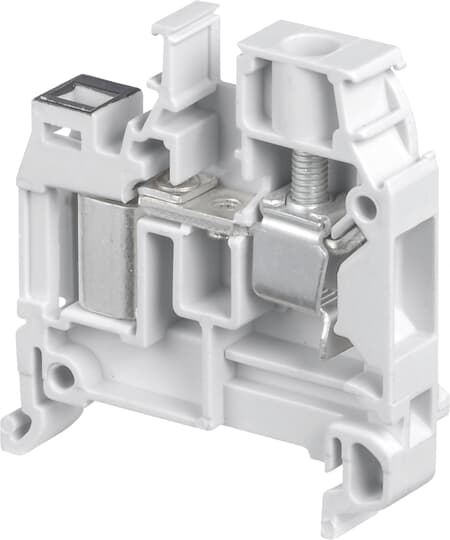

ABB 1SNA199077R2000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
With the ABB ADO System®, experience the fastest and most reliable connection on the market, - This solution brings all the benefits of the ADO System® and allows installators to connect on standard screw clamp, - Up to 2 wires per connection in the ADO System® connection.D6/8.ADO IDC Terminal Blocks - Feed-through ADO - screw clamp - Black
ABB 1SNA199077R2000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC000897 - Feed-through terminal block
- ETIM 5
- EC000897 - Feed-through terminal block
- ETIM 6
- EC000897 - Feed-through terminal block
- Object Classification Code
- X
Container Information
- Package Level 1 Depth / Length
- 220 mm
- Package Level 1 EAN
- 3472591990775
- Package Level 1 Gross Weight
- 0.55 kg
- Package Level 1 Height
- 47 mm
- Package Level 1 Units
- 50 piece
- Package Level 1 Width
- 81 mm
- Package Level 2 Depth / Length
- 500 mm
- Package Level 2 Gross Weight
- 8.25 kg
- Package Level 2 Height
- 150 mm
- Package Level 2 Units
- 750 piece
- Package Level 2 Width
- 300 mm
- Package Level 3 Units
- 36000 piece
Dimensions
- Product Net Depth / Length
- 41 mm
- Product Net Height
- 45 mm
- Product Net Weight
- 11 g
- Product Net Width
- 8 mm
Environmental
- Ambient Air Temperature
- Operation -55 ... +110 °CStorage -55 ... +110 °C
Ordering
- Color
- Black
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 50 piece
Technical
- Connecting Capacity Main Circuit
- Screw Clamp / Flexible 1x 0.22 ... 6 mm²Screw Clamp / Rigid 1x 0.2 ... 10 mm²
- Connection Type
- Screw Clamp - ADO System
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Dielectric Test Voltage
- 3500 V
- Function
- Feed-through
- Gauge Type
- A5
- Insulation Material
- Polyamide
- Mounting on DIN Rail
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Number of Levels
- 1
- Pollution Degree
- 3
- Rated Cross-Section
- 2.5 mm²
- Rated Current (In)
- Main Circuit 24 A
- Rated Impulse Withstand Voltage (Uimp)
- 8000 V
- Rated Short-time Withstand Current (Icw)
- for 1 s 300 A
- Rated Voltage (Ur)
- 1000 V
- Recommended Screw Driver
- 4.5 mm
- Spacing
- 8 mm
- Tightening Torque
- acc. IEC 60947-1 0.8 N·mManufacturer 1 N·m
- Wire Stripping Length
- 12.0 mm
Technical UL/CSA
- Connecting Capacity Main Circuit UL/CSA
- Screw Clamp / Rigid 1x 22 ... 8 AWGScrew Clamp / Rigid 2x 22 ... 12 AWG
- Connecting Capacity UL/CSA
- Stranded 14 AWG
- Flammability According to UL94
- V-0
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V
