ABB 1SNA190004R2300
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

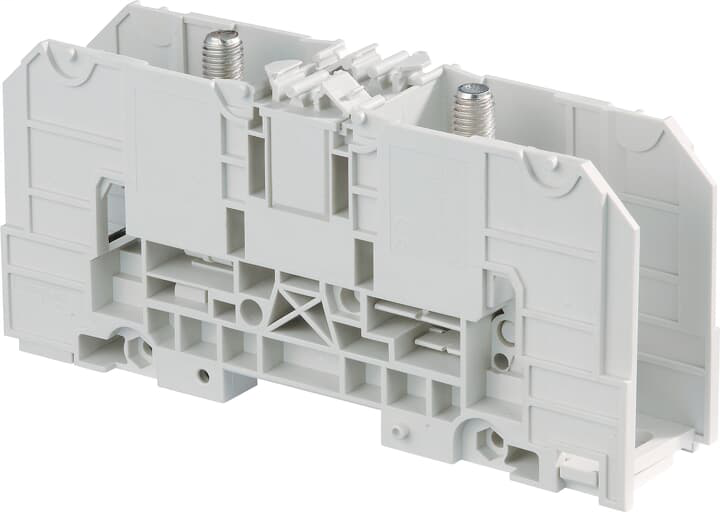

Rated cross section up to 300 mm2 / 1000 Kcmil, IP20 protection cover, - Holding foot on DIN 3 rail with two position for easy mounting, lug mounting in accordance with NF C 20-130 and DIN 46234, various marking options, rail or base mounting.D185/55.FF Stud Terminal Block - Feed-through - Grey
ABB 1SNA190004R2300 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC000897 - Feed-through terminal block
- ETIM 5
- EC000897 - Feed-through terminal block
- ETIM 6
- EC000897 - Feed-through terminal block
- Object Classification Code
- X
Container Information
- Package Level 1 Depth / Length
- 130 mm
- Package Level 1 EAN
- 3472591900040
- Package Level 1 Gross Weight
- 0.615 kg
- Package Level 1 Height
- 57 mm
- Package Level 1 Units
- 1 piece
- Package Level 1 Width
- 163 mm
- Package Level 2 Depth / Length
- 500 mm
- Package Level 2 Gross Weight
- 12.3 kg
- Package Level 2 Height
- 150 mm
- Package Level 2 Units
- 20 piece
- Package Level 2 Width
- 300 mm
- Package Level 3 Units
- 480 piece
Dimensions
- Product Net Depth / Length
- 90 mm
- Product Net Height
- 163 mm
- Product Net Weight
- 615 g
- Product Net Width
- 55 mm
Environmental
- Ambient Air Temperature
- Operation -55 ... +110 °CStorage -55 ... +110 °C
- RoHS Status
- Following EU Directive 2011/65/EU
Ordering
- Color
- Grey
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 1 piece
Technical
- Connecting Capacity Main Circuit
- Stud / Rigid 1x 6 ... 185 mm²
- Connection Type
- Stud
- Function
- Feed-through
- Insulation Material
- Polyamide
- Mounting on DIN Rail
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Number of Levels
- 1
- Pollution Degree
- 3
- Power Loss
- 11.3 W
- Rated Cross-Section
- 185 mm²
- Rated Current (In)
- Main Circuit 353 A
- Rated Short-time Withstand Current (Icw)
- for 1 s 8000 A
- Rated Voltage (Ur)
- 1000 V
- Spacing
- 55 mm
- Tightening Torque
- Cable Lug 30 N·mCentral Bolt 12 N·m
Technical UL/CSA
- Connecting Capacity UL/CSA
- Stranded 500 AWG
- Flammability According to UL94
- V-0
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V
