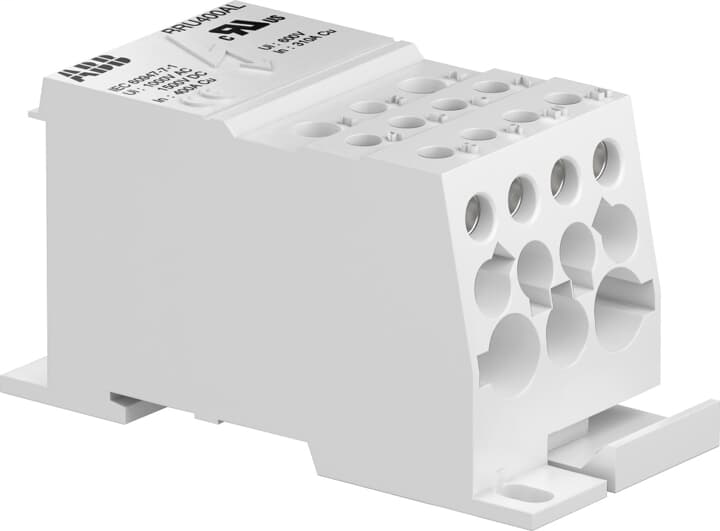

ABB 1SNA179650R2200
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Save installation time with our modular solutions, - Ease the installation with plate or rail mounting options on our modular blocks.BRU400AL Distribution Terminal Blocks
ABB 1SNA179650R2200 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ETIM 4
- EC000276 - Distribution terminal block
- ETIM 5
- EC000276 - Distribution terminal block
- ETIM 6
- EC000276 - Distribution terminal block
- Object Classification Code
- X
Container Information
- Package Level 1 Depth / Length
- 44.5 mm
- Package Level 1 EAN
- 3472591796506
- Package Level 1 Gross Weight
- 0.415 kg
- Package Level 1 Units
- 1 piece
- Package Level 2 Gross Weight
- 8.3 kg
- Package Level 2 Units
- 20 piece
- Package Level 3 Units
- 100 piece
Dimensions
- Product Net Depth / Length
- 44.5 mm
- Product Net Height
- 96 mm
- Product Net Weight
- 415 g
- Product Net Width
- 44.5 mm
Environmental
- Ambient Air Temperature
- Operation -30 ... +90 °CStorage -30 ... +100 °C
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Ordering
- Color
- Grey
- Customs Tariff Number
- 85369010
- Minimum Order Quantity
- 1 piece
Technical
- Connecting Capacity Main Circuit
- Screw Clamp / Rigid 1x 95 ... 185 mm²
- Connection Type
- Screw Clamp
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10
- Function
- Feed-through
- Mounting on DIN Rail
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Number of Levels
- 1
- Rated Cross-Section
- 150 mm²
- Rated Short-time Withstand Current (Icw)
- for 1 s 21 A
- Spacing
- 44.5 mm
- Tightening Torque
- Main Circuit 26 ... 30 N·m
- Wire Stripping Length
- 28.0 mm
Technical UL/CSA
- Connecting Capacity UL/CSA
- Stranded 350 AWG
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V
- Short-Circuit Current Rating (SCCR)
- 100 kA
