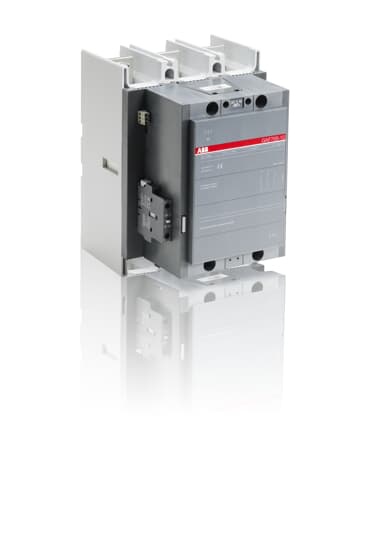

ABB 1SFL637025R7111
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
A 3-pole Contactor suitable for DC-1 applications where all three poles must be connected in series in a 1-pole configuration up to max 1000 VDC. Operated with wide control voltage range 250-500 V, AC/DCGAF750-10-11 250-500V 50/60Hz / 250-500V DC Contactor
ABB 1SFL637025R7111 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371018
- ETIM 4
- EC002552 - Power contactor, DC switching
- ETIM 5
- EC002552 - Power contactor, DC switching
- IDEA Granular Category Code (IGCC)
- 4763 >> Power contactor, DC switching
- Object Classification Code
- Q
Dimensions
- Product Net Depth / Length
- 242 mm
- Product Net Height
- 283 mm
- Product Net Weight
- 14 kg
- Product Net Width
- 210 mm
Environmental
- Ambient Air Temperature
- Operation -40 ... +80 °CStorage -40 ... +70 °C
- Maximum Operating Altitude Permissible
- Without Derating 3000 m
- Resistance to Shock acc. to IEC 60068-2-27
- Shock Direction: A 5 gShock Direction: B1 5 gShock Direction: B2 5 gShock Direction: C1 5 gShock Direction: C2 5 g
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Customs Tariff Number
- 85364900
- Minimum Order Quantity
- 1 piece
Technical
- Coil Consumption
- Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 12 V·AHolding at Max. Rated Control Circuit Voltage DC 4.5 WPull-in at Max. Rated Control Circuit Voltage 50 Hz 850 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 850 V·APull-in at Max. Rated Control Circuit Voltage DC 950 V·A
- Coil Operating Limits
- (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²Flexible 1x0.75 ... 2.5 mm²Solid 2 x 1 ... 4 mm²Stranded 2 x 1 .... 4 mm²
- Connecting Capacity Main Circuit
- Bar 52 mm²Rigid Al-Cable 3x185 mm²Rigid Cu-Cable 300 mm²
- Conventional Free-air Thermal Current (Ith)
- acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 1050 A
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
- Maximum Mechanical Switching Frequency
- 300 cycles per hour
- Mechanical Durability
- 3 million
- Number of Auxiliary Contacts NC
- 1
- Number of Auxiliary Contacts NO
- 1
- Number of Main Contacts NC
- 0
- Number of Main Contacts NO
- 1
- Rated Control Circuit Voltage (Uc)
- 50 Hz 250 ... 500 V60 Hz 250 ... 500 VDC Operation 250 ... 500 V
- Rated Impulse Withstand Voltage (Uimp)
- Main Circuit 8 kV
- Rated Insulation Voltage (Ui)
- acc. to UL/CSA 1000 V
- Rated Operational Current DC-1 (Ie)
- (1000 V) 3 Poles in Series, 40 °C 1050 A(1000 V) 3 Poles in Series, 55 °C 875 A(1000 V) 3 Poles in Series, 70 °C 720 A(220 V) 3 Poles in Series, 40 °C 1050 A(220 V) 3 Poles in Series, 55 °C 875 A(220 V) 3 Poles in Series, 70 °C 720 A(400 V) 3 Poles in Series, 40 °C 1050 A(400 V) 3 Poles in Series, 55 °C 875 A(400 V) 3 Poles in Series, 70 °C 720 A(600 V) 3 Poles in Series, 40 °C 1050 A(600 V) 3 Poles in Series, 55 °C 875 A(600 V) 3 Poles in Series, 70 °C 720 A
- Rated Operational Voltage
- Main Circuit 1000 V
- Terminal Type
- Main Circuit: Bars
Technical UL/CSA
- General Use Rating UL/CSA
- (1000 V DC) 900 A(440 V DC) 900 A(600 V DC) 900 A
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V
