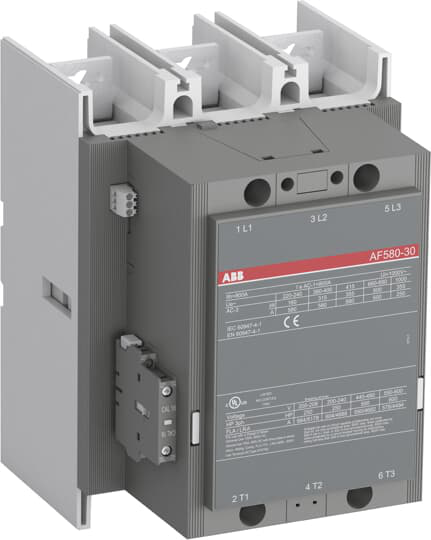

ABB 1SFL617001R6911

Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
ABB 1SFL617001R6911 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371003
- E-Number (Norway)
- 4115295
- E-Number (Sweden)
- 3228354
- ETIM 4
- EC000066 - Magnet contactor, AC-switching
- ETIM 5
- EC000066 - Magnet contactor, AC-switching
- IDEA Granular Category Code (IGCC)
- 4758 >> Iec Contactors
- Object Classification Code
- Q
Dimensions
- Product Net Depth / Length
- 242 mm
- Product Net Height
- 283 mm
- Product Net Weight
- 13.6 kg
- Product Net Width
- 210 mm
Environmental
- Ambient Air Temperature
- Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °CClose to Contactor for Storage -40 ... 70 °C
- Maximum Operating Altitude Permissible
- Without Derating 3000 m
- Resistance to Shock acc. to IEC 60068-2-27
- Shock Direction: A 5 gShock Direction: B1 5 gShock Direction: B2 5 gShock Direction: C1 5 gShock Direction: C2 5 g
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Customs Tariff Number
- 85364900
- Minimum Order Quantity
- 1 piece
Technical
- Coil Consumption
- Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 12 V·AHolding at Max. Rated Control Circuit Voltage DC 5 V·APull-in at Max. Rated Control Circuit Voltage 50 Hz 1100 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 1100 V·APull-in at Max. Rated Control Circuit Voltage DC 1020 V·A
- Coil Operating Limits
- (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible 2x0.75 ... 2.5 mm²Solid 1 x 1 ... 4 mm²Stranded 2 x 1 .... 4 mm²
- Connecting Capacity Main Circuit
- Bar 52 mm²Rigid Al-Cable 300 mm²Rigid Cu-Cable 300 mm²
- Conventional Free-air Thermal Current (Ith)
- acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 800 A
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
- Maximum Breaking Capacity
- cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 6000 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 5000 A
- Maximum Electrical Switching Frequency
- (AC-1) 300 cycles per hour(AC-2 / AC-4) 60 cycles per hour(AC-3) 300 cycles per hour
- Maximum Mechanical Switching Frequency
- 300 cycles per hour
- Mechanical Durability
- 3 million
- Number of Auxiliary Contacts NC
- 1
- Number of Auxiliary Contacts NO
- 1
- Number of Main Contacts NC
- 0
- Number of Main Contacts NO
- 3
- Operate Time
- Between Coil De-energization and NC Contact Closing 50 ... 70 msBetween Coil De-energization and NO Contact Opening 53 ... 73 msBetween Coil Energization and NC Contact Opening 45 ... 115 msBetween Coil Energization and NO Contact Closing 50 ... 120 ms
- Rated Breaking Capacity AC-3
- 8 x Ie AC-3
- Rated Control Circuit Voltage (Uc)
- 50 Hz 48 ... 130 V60 Hz 48 ... 130 VDC Operation 48 ... 130 V
- Rated Frequency (f)
- Main Circuit 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- Main Circuit 8 kV
- Rated Insulation Voltage (Ui)
- acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V
- Rated Making Capacity AC-3
- 10 x Ie AC-3
- Rated Operational Current AC-1 (Ie)
- (1000 V) 40 °C 800 A(1000 V) 55 °C 700 A(1000 V) 70 °C 580 A(690 V) 40 °C 800 A(690 V) 55 °C 700 A(690 V) 70 °C 580 A
- Rated Operational Current AC-3 (Ie)
- (415 V) 55 °C 580 A(440 V) 55 °C 580 A(500 V) 55 °C 580 A(690 V) 55 °C 500 A(1000 V) 55 °C 250 A(380 / 400 V) 55 °C 580 A(220 / 230 / 240 V) 55 °C 580
- Rated Operational Current DC-1 (Ie)
- (110 V) 1-Pole, 40 °C 800 A(110 V) 2 Poles in Series, 40 °C 800 A(220 V) 3 Poles in Series, 40 °C 800 A(600 V) 3 Poles in Series, 40 °C 800 A(850 V) 3 Poles in Series, 40 °C 800 A
- Rated Operational Current DC-3 (Ie)
- (110 V) 1-Pole, 40 °C 800 A(110 V) 2 Poles in Series, 40 °C 800 A(220 V) 3 Poles in Series, 40 °C 800 A(600 V) 3 Poles in Series, 40 °C 800 A
- Rated Operational Current DC-5 (Ie)
- (110 V) 1-Pole, 40 °C 800 A(110 V) 2 Poles in Series, 40 °C 800 A(220 V) 3 Poles in Series, 40 °C 800 A(600 V) 3 Poles in Series, 40 °C 800 A
- Rated Operational Power AC-3 (Pe)
- (415 V) 355 kW(440 V) 355 kW(500 V) 400 kW(690 V) 500 kW(1000 V) 355 kW(380 / 400 V) 315 kW(220 / 230 / 240 V) 160 kW
- Rated Operational Voltage
- Main Circuit 1000 V
- Rated Short-time Withstand Current Low Voltage (Icw)
- at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 6400 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 1300 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 3500 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 7000 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 4500 A
- Short-Circuit Protective Devices
- gG Type Fuses 1000 A
- Terminal Type
- Main Circuit: Bars
Technical UL/CSA
- General Use Rating UL/CSA
- (600 V AC) 750 A
- Horsepower Rating UL/CSA
- (200 V AC) Three Phase 200 hp(208 V AC) Three Phase 200 hp(220 ... 240 V AC) Three Phase 250 hp(440 ... 480 V AC) Three Phase 500 hp(550 ... 600 V AC) Three Phase 600 hp
- Maximum Operating Voltage UL/CSA
- Main Circuit 1000 V
