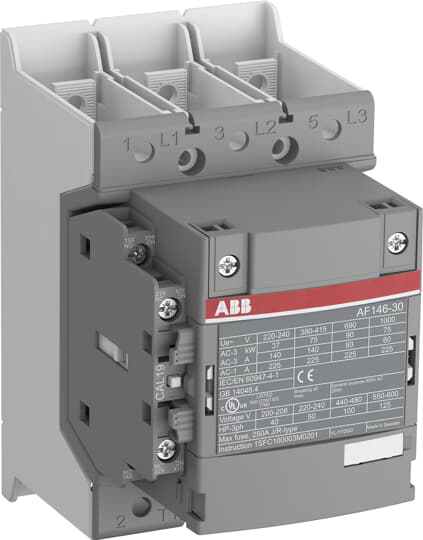

ABB 1SFL467002R1111

Circular Value

• ABB EcoSolutions
  • Yes
• Circular Design Principles Recyclability Rate
  • Design for Closing Resource Loops - Standard EN45555 - 87.8 %
• End of Life Instructions
  • 1SFC100112M0001
• Group Waste to Landfill Target
  • Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
• Improved Resource Efficiency for Customers
  • Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line
• Sustainable Material Content
  • Recycled Metal - 37 %

Classifications

• eClass
  • V11.0 : 27371003
• E-Number (Finland)
  • 3706376
• E-Number (Norway)
  • 4117634
• E-Number (Sweden)
  • 3210124
• ETIM 4
  • EC000066 - Magnet contactor, AC-switching
• ETIM 5
  • EC000066 - Magnet contactor, AC-switching
• IDEA Granular Category Code (IGCC)
  • 4758 >> Iec Contactors
• Object Classification Code
  • Q

Dimensions

• Product Net Depth / Length
  • 126 mm
• Product Net Height
  • 150 mm
• Product Net Weight
  • 1.3 kg
• Product Net Width
  • 90 mm

Eco Transparency

• Environmental Product Declaration - EPD
  • 1SFC100092D0201

Environmental

• Ambient Air Temperature
  • Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °CClose to Contactor for Storage -40 ... 70 °C
• Maximum Operating Altitude Permissible
  • Without Derating 3000 m
• RoHS Status
  • Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Ordering

• Customs Tariff Number
  • 85364900
• Minimum Order Quantity
  • 1 piece

Technical

• Coil Consumption
  • Holding at Max. Rated Control Circuit Voltage 50 Hz 5.5 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 5.5 V·AHolding at Max. Rated Control Circuit Voltage DC 2.5 WPull-in at Max. Rated Control Circuit Voltage 50 Hz 225 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 225 V·APull-in at Max. Rated Control Circuit Voltage DC 210 W
• Coil Operating Limits
  • (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
• Connecting Capacity Auxiliary Circuit
  • Flexible with Ferrule 2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible 2x0.75 ... 2.5 mm²Solid 2 x 1 ... 4 mm²Stranded 2 x 1 .... 4 mm²
• Connecting Capacity Main Circuit
  • Flexible 2 x 10 ... 70 mm²Rigid Cu-Cable 2 x 10 ... 95 mm²
• Conventional Free-air Thermal Current (Ith)
  • acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 225 A
• Degree of Protection
  • acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
• Maximum Breaking Capacity
  • cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3000 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 1500 A
• Maximum Electrical Switching Frequency
  • (AC-1) 300 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 300 cycles per hour
• Maximum Mechanical Switching Frequency
  • 300 cycles per hour
• Mechanical Durability
  • 5 million
• Number of Auxiliary Contacts NC
  • 1
• Number of Auxiliary Contacts NO
  • 1
• Number of Main Contacts NC
  • 0
• Number of Main Contacts NO
  • 3
• Operate Time
  • Between Coil De-energization and NO Contact Opening 37 ... 47 msBetween Coil Energization and NO Contact Closing 25 ... 55 ms
• Rated Breaking Capacity AC-3
  • 8 x Ie AC-3
• Rated Breaking Capacity AC-3e
  • 8.5 x Ie AC-3e
• Rated Control Circuit Voltage (Uc)
  • 50 Hz 24 ... 60 V60 Hz 24 ... 60 VDC Operation 20 ... 60 V
• Rated Frequency (f)
  • Main Circuit 50 / 60 Hz
• Rated Impulse Withstand Voltage (Uimp)
  • Main Circuit 8 kV
• Rated Insulation Voltage (Ui)
  • acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V
• Rated Making Capacity AC-3
  • 10 x Ie AC-3
• Rated Making Capacity AC-3e
  • 12 x Ie AC-3e
• Rated Operational Current AC-1 (Ie)
  • (1000 V) 40 °C 225 A(1000 V) 55 °C 200 A(1000 V) 60 °C 200 A(1000 V) 70 °C 175 A(690 V) 40 °C 225 A(690 V) 55 °C 200 A(690 V) 60 °C 200 A(690 V) 70 °C 175 A
• Rated Operational Current AC-3e (Ie)
  • (415 V) 60 °C 146 A(440 V) 60 °C 146 A(500 V) 60 °C 130 A(690 V) 60 °C 93 A(1000 V) 60 °C 54 A(380 / 400 V) 60 °C 146 A(220 / 230 / 240 V) 60 °C 146 A
• Rated Operational Current AC-3 (Ie)
  • (415 V) 55 °C 146 A(440 V) 55 °C 146 A(500 V) 55 °C 130 A(690 V) 55 °C 93 A(1000 V) 55 °C 60 A(380 / 400 V) 55 °C 146 A(220 / 230 / 240 V) 55 °C 146
• Rated Operational Power AC-3e (Pe)
  • (415 V) 75 kW(440 V) 90 kW(500 V) 90 kW(690 V) 90 kW(1000 V) 75 kW(380 / 400 V) 75 kW(220 / 230 / 240 V) 45 kW
• Rated Operational Power AC-3 (Pe)
  • (415 V) 75 kW(440 V) 90 kW(500 V) 90 kW(690 V) 90 kW(1000 V) 75 kW(380 / 400 V) 75 kW(220 / 230 / 240 V) 45 kW
• Rated Operational Voltage
  • Main Circuit 1000 V
• Rated Short-time Withstand Current Low Voltage (Icw)
  • at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1168 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 200 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 477 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1460 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 674 A
• Short-Circuit Protective Devices
  • gG Type Fuses 315 A
• Terminal Type
  • Main Circuit: Bars

Technical UL/CSA

• General Use Rating UL/CSA
  • (600 V AC) 200 A
• Horsepower Rating UL/CSA
  • (200 V AC) Three Phase 40 hp(208 V AC) Three Phase 40 hp(220 ... 240 V AC) Three Phase 50 hp(440 ... 480 V AC) Three Phase 100 hp(550 ... 600 V AC) Three Phase 125 hp
• Maximum Operating Voltage UL/CSA
  • Main Circuit 1000 V
