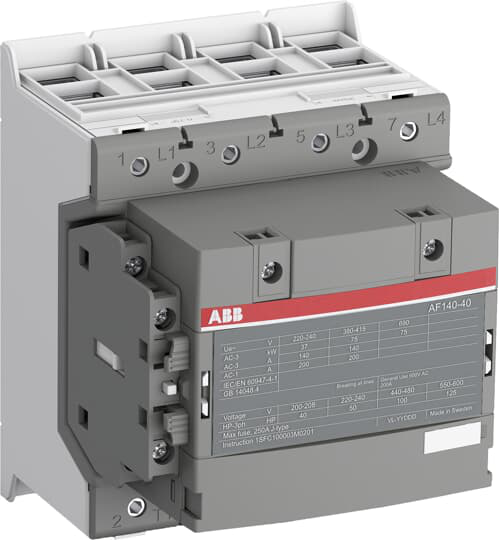

ABB 1SFL447101R1311

Circular Value

• ABB EcoSolutions
  • Yes
• Circular Design Principles Recyclability Rate
  • Design for Closing Resource Loops - Standard EN45555 - 87.8 %
• End of Life Instructions
  • 1SFC100112M0001
• Group Waste to Landfill Target
  • Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
• Improved Resource Efficiency for Customers
  • Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line
• Sustainable Material Content
  • Recycled Metal - 37 %

Classifications

• eClass
  • V11.0 : 27371003
• E-Number (Finland)
  • 3706088
• E-Number (Norway)
  • 4117779
• E-Number (Sweden)
  • 4117779
• ETIM 4
  • EC000066 - Magnet contactor, AC-switching
• ETIM 5
  • EC000066 - Magnet contactor, AC-switching
• IDEA Granular Category Code (IGCC)
  • 4758 >> Iec Contactors
• Object Classification Code
  • Q

Dimensions

• Product Net Depth / Length
  • 128 mm
• Product Net Height
  • 150 mm
• Product Net Weight
  • 2.05 kg
• Product Net Width
  • 120 mm

Eco Transparency

• Environmental Product Declaration - EPD
  • 1SFC100092D0201

Environmental

• Ambient Air Temperature
  • Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °CClose to Contactor for Storage -40 ... 70 °C
• Maximum Operating Altitude Permissible
  • Without Derating 3000 m
• RoHS Status
  • Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Ordering

• Customs Tariff Number
  • 85364900
• Minimum Order Quantity
  • 1 piece

Technical

• Coil Consumption
  • Holding at Max. Rated Control Circuit Voltage 50 Hz 6 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 6 V·AHolding at Max. Rated Control Circuit Voltage DC 3 WPull-in at Max. Rated Control Circuit Voltage 50 Hz 130 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 130 V·APull-in at Max. Rated Control Circuit Voltage DC 135 W
• Coil Operating Limits
  • (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
• Connecting Capacity Auxiliary Circuit
  • Flexible with Ferrule 2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm²Flexible 1x0.75 ... 2.5 mm²Solid 2 x 1 ... 4 mm²Stranded 2 x 1 .... 4 mm²
• Connecting Capacity Main Circuit
  • Flexible 1 x 10 ... 70 mm²Rigid Cu-Cable 1 x 10 ... 95 mm²
• Conventional Free-air Thermal Current (Ith)
  • acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 200 A
• Degree of Protection
  • acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
• Maximum Breaking Capacity
  • cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3000 A
• Maximum Electrical Switching Frequency
  • (AC-1) 300 cycles per hour
• Maximum Mechanical Switching Frequency
  • 300 cycles per hour
• Mechanical Durability
  • 5 million
• Number of Auxiliary Contacts NC
  • 1
• Number of Auxiliary Contacts NO
  • 1
• Number of Main Contacts NC
  • 0
• Number of Main Contacts NO
  • 4
• Operate Time
  • Between Coil De-energization and NO Contact Opening 40 ... 70 msBetween Coil Energization and NO Contact Closing 20 ... 55 ms
• Rated Breaking Capacity AC-3
  • 8 x Ie AC-3
• Rated Control Circuit Voltage (Uc)
  • 50 Hz 100 ... 250 V60 Hz 100 ... 250 VDC Operation 100 ... 250 V
• Rated Frequency (f)
  • Main Circuit 60 Hz
• Rated Impulse Withstand Voltage (Uimp)
  • Main Circuit 8 kV
• Rated Insulation Voltage (Ui)
  • acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V
• Rated Making Capacity AC-3
  • 10 x Ie AC-3
• Rated Operational Current AC-1 (Ie)
  • (690 V) 40 °C 200 A(690 V) 60 °C 175 A(690 V) 70 °C 160 A
• Rated Operational Current AC-3 (Ie)
  • (415 V) 55 °C 140 A(440 V) 55 °C 140 A(380 / 400 V) 55 °C 140 A(220 / 230 / 240 V) 55 °C 140
• Rated Operational Power AC-3 (Pe)
  • (415 V) 75 kW(440 V) 90 kW(380 / 400 V) 75 kW(220 / 230 / 240 V) 37 kW
• Rated Operational Voltage
  • Main Circuit 690 V
• Rated Short-time Withstand Current Low Voltage (Icw)
  • at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1168 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 200 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 477 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1460 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 674 A
• Short-Circuit Protective Devices
  • gG Type Fuses 250 A
• Terminal Type
  • Double Clamp

Technical UL/CSA

• General Use Rating UL/CSA
  • (600 V AC) 200 A
• Horsepower Rating NEMA
  • (200 V AC) Three Phase 40 Hp(230 V AC) Three Phase 50 Hp(460 V AC) Three Phase 100 Hp(575 V AC) Three Phase 100 Hp
• Horsepower Rating UL/CSA
  • (200 ... 208 V AC) Three Phase 15 Hp(200 V AC) Three Phase 40 hp(208 V AC) Three Phase 40 hp(220 ... 240 V AC) Three Phase 20 Hp(220 ... 240 V AC) Three Phase 50 hp(440 ... 480 V AC) Three Phase 40 Hp(440 ... 480 V AC) Three Phase 100 hp(550 ... 600 V AC) Three Phase 50 Hp(550 ... 600 V AC) Three Phase 125 hp
• Maximum Operating Voltage UL/CSA
  • Main Circuit 600 V
• NEMA Size
  • 4
