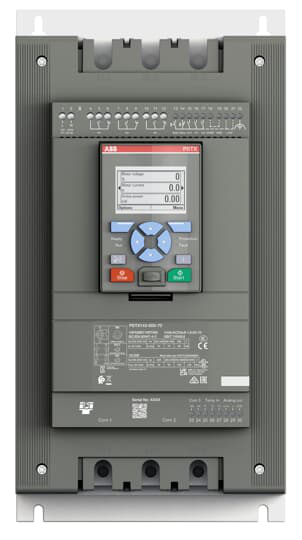

ABB 1SFA898110R7000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The softstarter PSTX142-600-70 has a rated maximum operational current of 142 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSTX features a three-phase control soft start and stop through a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR and Event signal is available from relay outputs in NO (normally open state). The PSTX has functions such as current limit, kickstart, analog output, EOL, motor heating and pump cleaning. PSTX also features features jog, braking, stand-still brake, diagnostics, sequence start and emergency/fire pump mode as standard.To interact with PSTX, it has a detachable full graphic display with IP66 and 4x outdoor rating. There are four ways to communicate with PSTX. It can be done by hardwire inputs Start/Stop/Reset of fault, and by three programmable digital inputs. Another popular option is the built-in Fieldbus communication Modbus RTU and incl optional ANYBUS modules with every major protocol such as for example Profinet, Profibus, Modbus TCP, Ethernet IP and others. Another way to communicate with PSTX is to use an external adaptor and a Fieldbus plug. PSTX is the complete alternative for any motor starting application. It’s suitable for medium to large-sized three-phase motors with nominal currents from 30...1250 A inline connection or 52...2160 A inside delta connection. Typical applications are, for example, pumps, fans, compressors, and conveyors.PSTX142-600-70 Softstarter - 142 A - 208 ... 600 V AC
ABB 1SFA898110R7000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27370907
- ETIM 9
- EC000640 - Soft starter
- IDEA Granular Category Code (IGCC)
- 4740 >> Soft starter
- Object Classification Code
- Q
Dimensions
- Product Net Depth / Length
- 283 mm
- Product Net Height
- 377 mm
- Product Net Weight
- 7 kg
- Product Net Width
- 199 mm
Environmental
- Ambient Air Temperature
- Operation -25 ... +60 °CStorage -40 ... +70 °C
- Degree of Protection
- IP00
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Ordering
- Customs Tariff Number
- 85371091
- Minimum Order Quantity
- 1 piece
Technical
- Adjustable Rated Motor Current Ie
- 30 ... 100 %
- Analog Outputs
- 0…10 V, 0…20 mA, 4…20 mA
- By-pass Signal Relay
- Yes
- Communication
- Modbus-RTU; Modbus-TCP; Ethernet-IP; EtherCAT; DeviceNet; CANopen; Profibus; Profinet; BACnet-IP; BACnet-MSTP
- Connecting Capacity Control Circuit
- Rigid 1 x 2.5 mm²
- Connecting Capacity Main Circuit
- Hole Diameter 8.5 mm
- Connecting Capacity Supply Circuit
- Rigid 1 x 2.5 mm²
- Current Limit Function
- 1.5 ... 7.5 xle
- Degree of Protection
- IP00
- Fault Signal Relay
- Yes
- Function
- Auto phase sequence detectionAutomatic restartCurrent limitCurrent limit rampDual current limitDynamic brakeElectricity meteringElectronic overload Time-to-coolEmergency modeEvent logFull voltage startJog with slow speed, forward and reverseKeypad passwordKick startLimp mode with two-phase motor control if one set of thyristors is shortedMotor heatingPre-start functionPump cleaningReal time clockSequence startSoft start with torque controlSoft start with voltage rampSoft stop with torque controlSoft stop with voltage rampStand still brakeStart reverse (external contactors)Thyristor runtime measurementTorque limitVoltage sags detection
- Initial Voltage During Start
- 10 ... 99 %
- Integrated Electronic Overload
- Yes
- Overload Protection
- Built-in electronic overload protection
- Overload Signal Relay
- Yes
- Product Main Type
- PSTX142
- Protection Function
- Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection
- Ramp Time
- 1 ... 120 second [unit of time]
- Rated Control Circuit Voltage (Uc)
- 24 V DC
- Rated Control Supply Voltage (Us)
- 100 ... 250 V AC
- Rated Frequency (f)
- 50/60 HzMain Circuit 50 / 60 Hz
- Rated Operational Current - In-Line Connection (Ie)
- 142 A
- Rated Operational Current - Inside Delta Connection
- 245 A
- Rated Operational Power - In-Line Connection (Pe)
- (230 V) 37 kW(400 V) 75 kW(500 V) 90 kW
- Rated Operational Power - Inside Delta Connection
- at 230 V 75 kWat 400 V 132 kWat 500 V 160 kW
- Rated Operational Voltage
- 208 ... 600 V AC
- Run Signal Relay
- Yes
- Service Factor Percentage
- 100 %
- Signal Indication Fault (LED)
- Red
- Signal Indication Protection (LED)
- Yellow
- Signal Indication Ready to Start/Standby ON (LED)
- Green
- Signal Indication Running R (LED)
- Green
- Starting Capacity at Maximum Rated Current Ie
- 4xIe for 10s
- Step Down Voltage Special Ramp
- 100 ... 10 %
- Switch for Inside Delta Connection
- Yes
- Terminal Type
- Main Circuit: Bars
- Tightening Torque
- Main Circuit 14 N·m
- Warning Details
- Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) - Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V
- Tightening Torque UL/CSA
- Main Circuit 123.9
