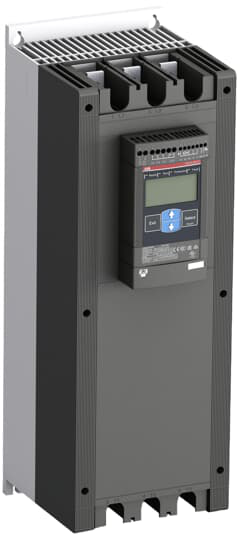

ABB 1SFA897113R7000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Softstarter PSE250-600-70 for max 600V main voltage and 100 - 250V 50/60Hz control supply voltage.SOFTSTARTER#PSE250-600-70
ABB 1SFA897113R7000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Information
- ABB Type Designation
- PSE250-600-70
- Adjustable Rated Motor Current Ie
- 30 ... 100 %
- Ambient Air Temperature
- Operation -25 ... +60 °CStorage -40 ... +70 °C
- Ambient Temperature
- -25 ... 60 °C
- Analog Outputs
- 4…20 mA
- By-pass Signal Relay
- Yes
- CN8
- 8537 10 91
- Communication
- FiledBusPlug(Optional)
- Connecting Capacity Control Circuit
- Rigid 1 x 2.5 mm²Rigid 2 x 1.5 mm²
- Connecting Capacity Main Circuit
- Hole Diameter 10.2 mmWidth and Thickness 20x5 mm
- Connecting Capacity Supply Circuit
- Rigid 1 x 2.5 mm²
- Conventional Free-air Thermal Current (Ith)
- Signal Relays 3 A
- Current Limit Function
- 1.5 ... 7xIe
- Current Range
- 75 ... 250 A
- Customs Tariff Number
- 85371091
- Data Sheet, Technical Information
- 1SFC132005C0201
- Declaration of Conformity - CE
- 2CMT003496
- Degree of Protection
- IP00
- eClass
- V11.0 : 27370907
- E-Number (Norway)
- 4189712
- Environmental Information
- 1SFC132042D0201
- EPLAN Catalog Tree
- Electrical engineering / Converters / General
- EPLAN Data Portal Status
- Available but Not EDS Compliant
- EPLAN Product Categorization
- Main Product WITH Accessories
- ETIM 4
- EC002572 - Electronic motor control and protection device
- ETIM 5
- EC002572 - Electronic motor control and protection device
- ETIM 9
- EC000640 - Soft starter
- Fault Signal Relay
- Yes
- Global Commercial Alias
- PSE250-600-70
- Initial Voltage During Start
- 30 ... 70 %
- Instructions and Manuals
- 1SFC132057M0201
- Integrated Electronic Overload
- Yes
- Invoice Description
- SOFTSTARTER#PSE250-600-70
- Minimum Order Quantity
- 1 piece
- Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time
- 10
- Object Classification Code
- Q
- Order Code US and Canada
- PSE250-600-70
- Order Multiple
- 1
- Overload Protection
- Build-in electronic overload protection
- Overload Signal Relay
- Yes
- Package Level 1 Depth / Length
- 600 mm
- Package Level 1 EAN
- 7320500400715
- Package Level 1 Gross Weight
- 14.7 kg
- Package Level 1 Height
- 310 mm
- Package Level 1 Units
- 1 piece
- Package Level 1 Width
- 260 mm
- Power Consumption (@Pcons)
- 23 W
- Power Loss
- 12.5 W
- Product Main Type
- PSE250
- Product Name
- Softstarter
- Product Net Depth / Length
- 236.5 mm
- Product Net Height
- 550 mm
- Product Net Weight
- 13.9 kg
- Product Net Width
- 190 mm
- Ramp Time
- 0 ... 30 second [unit of time]1 ... 30 second [unit of time]
- Rated Control Circuit Voltage (Uc)
- DC Operation 24 V
- Rated Control Supply Voltage (Us)
- 100 ... 250 V AC
- Rated Frequency (f)
- 50/60 HzMain Circuit 50 / 60 Hz
- Rated Operational Current AC-15 (Ie)
- (250 V) 1.5 A
- Rated Operational Current - In-Line Connection (Ie)
- 250 A
- Rated Operational Power - In-Line Connection (Pe)
- (230 V) 75 kW(400 V) 132 kW(500 V) 160 kW
- Rated Operational Voltage
- 208 ... 600 V AC
- Replacement Product ID (NEW)
- 1SFA897113R7001
- RoHS Date
- 1042 1
- RoHS Information
- 1SFC132043D0201
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
- Run Signal Relay
- Yes
- Selling Unit of Measure
- piece
- Service Factor Percentage
- 100 %
- Short Description
- SOFTSTARTER#PSE250-600-70
- Signal Indication Completed Start Ramp (LED)
- Green
- Signal Indication Fault (LED)
- Red
- Signal Indication Protection (LED)
- Yellow
- Signal Indication Ramping Up/Down (LED)
- Green
- Signal Indication Ready to Start/Standby ON (LED)
- Green
- Signal Indication Running R (LED)
- Green
- Starting Capacity at Maximum Rated Current Ie
- 4xIe for 10s
- Step Down Voltage Special Ramp
- No %
- Switch for Inside Delta Connection
- No
- Switch for Kick Start (Kick)
- Yes
- Terminal Type
- Main Circuit: Bars
- Tightening Torque
- Control Circuit 0.5 N·mMain Circuit 28 N·mSupply Circuit 0.5 N·m
- Trip Class
- class 30class 10class 10Aclass 20
- Type of Start
- normal
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 4. Large Equipment (Any External Dimension More Than 50 cm)
