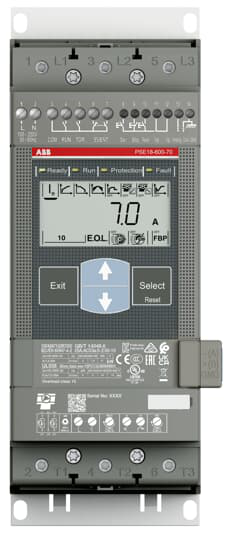

ABB 1SFA897101R7000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The softstarter PSE18-600-70 has a rated maximum operational current of 18 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSE features a two-phase control with a soft start and stop through a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR, and Event signal is available from a relay output in NO (normally open state). The PSE has functions such as current limit, kickstart, analog output, EOL, underload, and locked rotor protection. To interact with PSE, it has an Illuminated display that uses symbols to become language neutral. As an option, you can add an identical external keypad with a rating of IP66. There are three ways to communicate with PSE. It can be done by hardwire inputs Start/Stop or by Reset of fault. Another popular option is the built-in fieldbus communication Modbus RTU. You can also use an external adaptor and a Fieldbus plug. PSE is a true general purpose softstarter. It’s a perfect balance between high starting capacity and cost efficiency. Very suitable for small to medium-sized three-phase motors with nominal currents from 18...370 A. Typical applications are, for example, pumps, fans, compressors, and conveyors.PSE18-600-70 Softstarter - 18 A - 208 ... 600 V AC
ABB 1SFA897101R7000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27370907
- ETIM 9
- EC000640 - Soft starter
- IDEA Granular Category Code (IGCC)
- 4740 >> Soft starter
- Object Classification Code
- Q
Dimensions
- Product Net Depth / Length
- 184 mm
- Product Net Height
- 245 mm
- Product Net Weight
- 2.5 kg
- Product Net Width
- 90 mm
Environmental
- Ambient Air Temperature
- Operation -25 ... +60 °CStorage -40 ... +70 °C
- Degree of Protection
- IP00
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Ordering
- Customs Tariff Number
- 85371091
- Minimum Order Quantity
- 1 piece
Technical
- Adjustable Rated Motor Current Ie
- 30 ... 100 %
- Analog Outputs
- 4…20 mA
- By-pass Signal Relay
- Yes
- Communication
- Modbus-RTU
- Connecting Capacity Control Circuit
- Rigid 1 x 2.5 mm²Rigid 2 x 1.5 mm²
- Connecting Capacity Main Circuit
- Hole Diameter 8.5 mmRigid 1/2 x 2.5 ... 70 mm²Width and Thickness 17.5x5 mm
- Connecting Capacity Supply Circuit
- Rigid 1 x 2.5 mm²
- Current Limit Function
- 1.5 ... 7xIe
- Degree of Protection
- IP00
- Fault Signal Relay
- Yes
- Function
- Soft start with torque controlSoft start with voltage rampSoft stop with torque controlSoft stop with voltage rampKick startSequence startCurrent limitStart reverse (external contactors)Automatic restartEvent log
- Initial Voltage During Start
- 30 ... 70 %
- Integrated Electronic Overload
- Yes
- Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time
- 10
- Overload Protection
- Build-in electronic overload protection
- Overload Signal Relay
- Yes
- Product Main Type
- PSE18
- Protection Function
- Electronic overload protection, EOL; Locked rotor protection; Current underload protection
- Ramp Time
- 0 ... 30 second [unit of time]1 ... 30 second [unit of time]
- Rated Control Circuit Voltage (Uc)
- 24 V DC
- Rated Control Supply Voltage (Us)
- 100 ... 250 V AC
- Rated Frequency (f)
- 50/60 HzMain Circuit 50 / 60 Hz
- Rated Operational Current - In-Line Connection (Ie)
- 18 A
- Rated Operational Power - In-Line Connection (Pe)
- (230 V) 4 kW(400 V) 7.5 kW(500 V) 11 kW
- Rated Operational Voltage
- 208 ... 600 V AC
- Run Signal Relay
- Yes
- Service Factor Percentage
- 100 %
- Signal Indication Completed Start Ramp (LED)
- Green
- Signal Indication Fault (LED)
- Red
- Signal Indication Protection (LED)
- Yellow
- Signal Indication Ramping Up/Down (LED)
- Green
- Signal Indication Ready to Start/Standby ON (LED)
- Green
- Signal Indication Running R (LED)
- Green
- Starting Capacity at Maximum Rated Current Ie
- 4xIe for 10s
- Step Down Voltage Special Ramp
- No %
- Switch for Inside Delta Connection
- No
- Terminal Type
- Screw Terminals
- Tightening Torque
- Control Circuit 0.5 N·mMain Circuit 9 N·mSupply Circuit 0.5 N·m
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V
- Tightening Torque UL/CSA
- Control Circuit 4.4 in·lbMain Circuit 79.7Supply Circuit 4.4 in·lb
