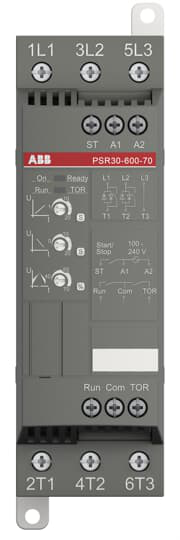

ABB 1SFA896109R7000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The softstarter PSR30-600-70 has a rated maximum operational current of 30 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...240 V AC at 50/60 Hz. PSR features a two-phase control soft start and stop through a voltage ramp. It has built-in bypass for easy installation and energy saving. A RUN and a TOR signal is available from a relay output in NO (normally open state). The start/stop ramp and time is easy to set by three potentiometers on the front. PSR is often used in combination with a manual motor starter (MMS) from ABB, so mechanical connection kits are available. Another popular option is Fieldbus communication, which can be enabled by an external adaptor and a Fieldbus plug. The PSR range is our most compact softstarters with basic functionality and values. They are suitable for small three-phase motors with nominal currents from 3...105 A and can manage up to 100 starts per hour. Common applications are, for example, pumps, fans, compressors, and conveyors.PSR30-600-70 Softstarter - 30 A - 208 ... 600 V AC
ABB 1SFA896109R7000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27370907
- ETIM 9
- EC000640 - Soft starter
- IDEA Granular Category Code (IGCC)
- 4740 >> Soft starter
- Object Classification Code
- Q
Dimensions
- Product Net Depth / Length
- 45 mm
- Product Net Height
- 160 mm
- Product Net Weight
- 0.6 kg
- Product Net Width
- 128 mm
Environmental
- Ambient Air Temperature
- Operation -25 ... +60 °CStorage -40 ... +70 °C
- Degree of Protection
- IP20
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Ordering
- Customs Tariff Number
- 85371091
- Minimum Order Quantity
- 1 piece
Technical
- Adjustable Rated Motor Current Ie
- No
- By-pass Signal Relay
- Yes
- Communication
- FiledBusPlug(Optional)
- Connecting Capacity Control Circuit
- 1 x 0.75 ... 2.52 x 0.75 ... 2.5 mm²Rigid 1 x 0.75 ... 2.5 mm²Rigid 2 x 0.75 ... 1.5 mm²
- Connecting Capacity Main Circuit
- Rigid 1/2 x 2.5 ... 10 mm²
- Connecting Capacity Supply Circuit
- Rigid 1 x 0.75 ... 2.5 mm²
- Current Limit Function
- No
- Degree of Protection
- IP20
- Fault Signal Relay
- No
- Function
- Soft start with voltage rampSoft stop with voltage ramp
- Initial Voltage During Start
- 40 ... 70 %
- Integrated Electronic Overload
- No
- Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time
- 10
- Overload Protection
- Recommended MS132 25 ... 32
- Overload Signal Relay
- No
- Product Main Type
- PSR30
- Ramp Time
- 0 ... 20 second [unit of time]1 ... 10 second [unit of time]
- Rated Control Circuit Voltage (Uc)
- 24 V DC
- Rated Control Supply Voltage (Us)
- 100 ... 240 V AC
- Rated Frequency (f)
- 50/60 HzMain Circuit 50 / 60 Hz
- Rated Operational Current - In-Line Connection (Ie)
- 30 A
- Rated Operational Power - In-Line Connection (Pe)
- (230 V) 7.5 kW(400 V) 15 kW(500 V) 18.5 kW
- Rated Operational Voltage
- 208 ... 600 V AC
- Run Signal Relay
- Yes
- Service Factor Percentage
- 100 %
- Signal Indication Completed Start Ramp (LED)
- Green
- Signal Indication Ramping Up/Down (LED)
- Green
- Signal Indication Ready to Start/Standby ON (LED)
- Green
- Signal Indication Running R (LED)
- Green
- Starting Capacity at Maximum Rated Current Ie
- 4xIe for 6s
- Step Down Voltage Special Ramp
- 100 ... 60 %
- Switch for Inside Delta Connection
- No
- Terminal Type
- Screw Terminals
- Tightening Torque
- Control Circuit 0.6 N·mMain Circuit 2.3 N·mSupply Circuit 0.6 N·m
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V
- Tightening Torque UL/CSA
- Control Circuit 5.3 in·lbMain Circuit 20.4Supply Circuit 5.3 in·lb
