ABB 1SFA619101R3072
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

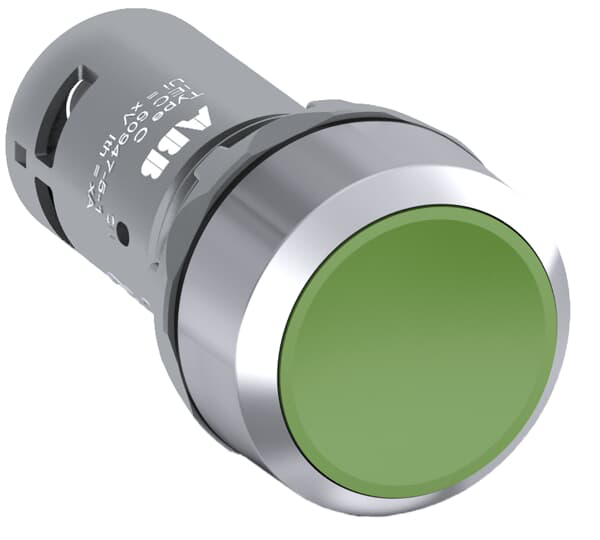

The CP2-30G-11 Pushbutton is: Compact - Pushbutton - Maintained - Flush - Green - Non-illuminated - Chrome Metal - 1NO+1NC - 1 NO - 1 NC - 300 VCP2-30G-11 Pushbutton
ABB 1SFA619101R3072 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- eClass
- V11.0 : 27371228
- IDEA Granular Category Code (IGCC)
- 5212 >> Push button for distribution board
- Object Classification Code
- S
Dimensions
- Product Net Depth / Length
- 0.055 m
- Product Net Height
- 0.03 m
- Product Net Weight
- 0.036 kg
- Product Net Width
- 0.03 m
Environmental
- RoHS Date
- 0626 5
- RoHS Information
- 2CMT2015-005451
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Ordering
- Customs Tariff Number
- 8536501999
- Minimum Order Quantity
- 10 piece
Technical
- Actuator Type
- Flush
- Ambient Air Temperature
- Operation -25 ... +70 °CStorage -40 ... +85 °C
- Bezel Material
- Chrome Metal
- Color
- Green
- Connecting Capacity
- Flexible with Ferrule 1 x 0.5...1.5 mm²Flexible with Ferrule 2 x 0.5...1.5 mm²Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²Flexible 1 x 0.5 ...1.5 mm²Flexible 2 x 0.5 ...1.5 mm²Solid 1 x 0.5...1.5 mm²Solid 2 x 0.5...1.5 mm²
- Connection Type
- Screw Clamp
- Degree of Protection
- Front IP66Front IP67Front IP69KTerminals IP20
- Enclosure Type NEMA
- Type1Type12Type13Type3RType4Type4X
- Function
- Maintained
- Illumination
- Non-illuminated
- Mechanical Durability
- 0.5 million
- Number of Auxiliary Contacts NC
- 1
- Number of Auxiliary Contacts NO
- 1
- Pollution Degree
- 3
- Power Loss
- Maximum 5 W
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV
- Rated Insulation Voltage (Ui)
- 300 V
- Rated Operational Current AC-15 (Ie)
- (240 V) 1 A
- Rated Operational Current DC-13 (Ie)
- (24 V) 0.3 A(125 V) 0.2 A
- Rated Operational Voltage
- Maximum 300 V
- Terminal Type
- Screw Terminals
- Tightening Torque
- 0.8 N·m
- Wire Stripping Length
- 6 mm
Technical UL/CSA
- Connecting Capacity UL/CSA
- 1x 22...14 AWG2x 22...14 AWG
