Description

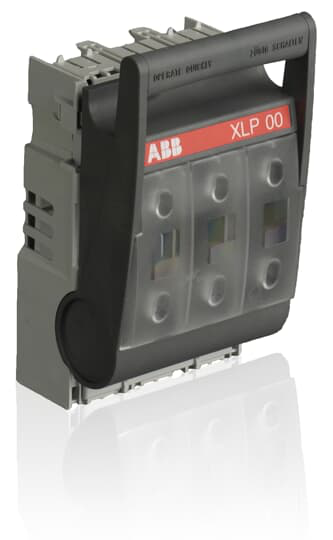

XLP00,3-pole,160A, incl. 6 Bridge ClampsXLP00-6BC Fuse Switch Disconnector
ABB 1SEP101890R0002 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Circular Value
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- REACH Declaration
- 1SCC011021D0201
- RoHS Information
- 1SCC011020D0201
Classifications
- eClass
- V11.1 : 27371401
- E-Number (Finland)
- 3601019
- E-Number (Sweden)
- 2307311
- ETIM 9
- EC001040 - Fuse switch disconnector
- Object Classification Code
- S
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 90 mm
- Product Net Height
- 187 mm
- Product Net Weight
- 0.57 kg
- Product Net Width
- 105 mm
Environmental
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Country of Origin
- Bulgaria (BG)China (CN)
- Customs Tariff Number
- 85389099
- Minimum Order Quantity
- 1 piece
Technical
- Degree of Protection
- IP30
- Device Type Manager (DTM)
- Fuseswitchdisconnector
- Electronic Fuse Monitoring
- No
- Fuse Size
- NH00NH000
- Fuse System
- DIN
- Handle Type
- Front cover 3P
- Mounting Type
- Baseplate
- Number of Poles
- 3
- Power Loss
- at Rated Load 3.5 W
- Rated Conditional Short-Circuit Current (Inc)
- (690 V) 50 kiloampere rms
- Rated Current (In)
- 160 A
- Rated Frequency (f)
- Main Circuit 50/60 Hz
- Rated Impulse Withstand Voltage (Uimp)
- Main Circuit 8 kV
- Rated Operational Current AC-21B (Ie)
- (690 V) 125 A
- Rated Operational Current AC-22B (Ie)
- (500 V) 160 A(800 V) 63 A(1000 V) 125 A
- Rated Operational Current AC-23B (Ie)
- (400V) 125 A
- Rated Operational Voltage
- 400 V AC500 V AC690 V AC800 V AC1000 V AC
- Rated Voltage (Ur)
- 400 V AC500 V AC690 V AC800 V AC1000 V AC
- Special Functions
- Not Included
- Standards
- IEC60947-3GB/T14048.3
- Terminal Type
- Cable Clamp
