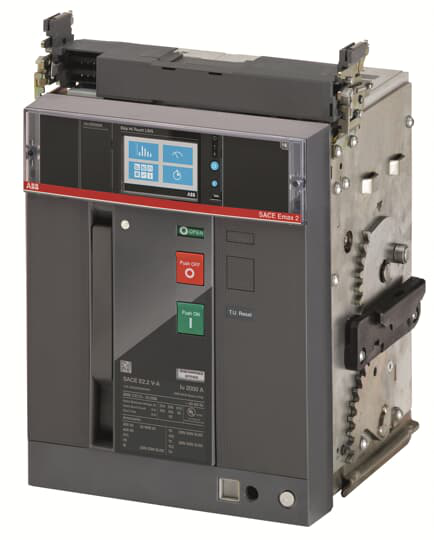

ABB 1SDA077669R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E2.2S-A 2000 UL THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LSI R 2000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2S-A 2000 Ekip Dip LSI 3p WMP
ABB 1SDA077669R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- Current Type
- AC
- Electrical Durability
- Ue =< 508 V 10000 cycleUe = 508 ... 635 V 8000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 350 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 2000 A
- Rated Insulation Voltage (Ui)
- AC 635 V
- Rated Operational Voltage
- 600 V AC
- Rated Voltage (Ur)
- 600 V
- Release
- Ekip Dip LSI
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- UL
- Sub-type
- E2.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 393 mm
- Product Net Height
- 425 mm
- Product Net Weight
- 49 kg
- Product Net Width
- 317 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1906
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 82069169-f568-4e1e-b9ee-e102ad635dbe Italy (IT)
- Simplified SCIP
- aec2a050-6d1a-40c9-af83-69af7ece0888 Belgium (BE)5bd53b56-504c-49d1-ba9a-ab1bfed0b0e3 Sweden (SE)5546b45a-cae1-43d2-a496-2ed71c18e442 Germany (DE)5f523840-8bdc-4a86-a754-b72395952fd2 Finland (FI)52dc7362-7223-4c3e-bad6-a01e3d7af404 Estonia (EE)4a0a3742-f03b-4d29-b7c1-b00eafb3d9e3 Norway (NO)277345b4-2e62-472b-838b-3938bc6fd08b Hungary (HU)4ac07edf-0f90-462d-b95a-d3d43f96abcf Poland (PL)5d86727a-8bf2-4fca-b984-ac9cf0ac8494 France (FR)16b9b1eb-4868-493c-887f-e0869800a0ca Croatia (HR)c87038be-f441-4573-b189-35445d053fc2 France (FR)9c073115-79b5-4202-95b6-7b79f3a01c93 Denmark (DK)98ae60f3-340c-40b4-bed7-02f000cbb8ae Germany (DE)3df9919a-3dfb-40ee-8000-5ffc12916783 Germany (DE)1fb681b7-f069-4906-8288-bba07f3f4510 Germany (DE)7fbacf49-8306-469a-b707-7c05c44eedd5 Czech Republic (CZ)892da7b1-472b-4367-b044-231a2b0c3b3d Poland (PL)455d6e6e-c997-4e72-ac9f-65d30a04f659 Netherlands (NL)a59bfbcb-a129-434b-876e-fc9d63d524a1 Poland (PL)c3f80c73-a855-42de-91e5-adb3ed2f5357 Bulgaria (BG)304a0b32-bca8-42bb-b00d-6e696b0f0e60 Sweden (SE)9fac0322-60be-4401-93e0-02a54da41a1c Portugal (PT)7942a82c-043b-4067-864a-25d45334f858 Greece (GR)2e90484d-afda-4d23-a5d1-c082a1959401 Belgium (BE)1560a09a-dd46-4ad0-8a46-19fec493ec66 Hungary (HU)7741de3b-67f4-4649-860e-53a7c32db9f1 Spain (ES)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z2SFUKAB000A000000XX
Technical UL/CSA
- Interrupting Rating acc. to UL1066
- (254 V) 65 kA(508 V) 65 kA(635 V) 65 kA
