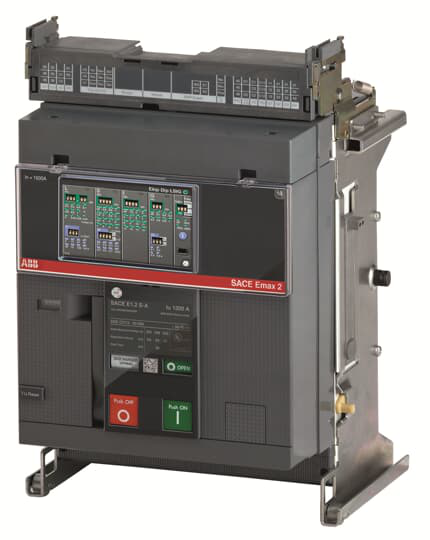

ABB 1SDA077139R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E1.2S-A 1200 UL THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LSI R 1200 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE1.2S-A 1200 Ekip Dip LSI 3p WMP
ABB 1SDA077139R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- Current Type
- AC
- Electrical Durability
- Ue =< 508 V 7000 cycleUe = 508 ... 635 V 6500 cycle30 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- at Rated Operating Conditions per Pole 250 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1200 A
- Rated Insulation Voltage (Ui)
- AC 635 V
- Rated Operational Voltage
- 600 V AC
- Rated Voltage (Ur)
- 600 V
- Release
- Ekip Dip LSI
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- UL
- Sub-type
- E1.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2360
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 281 mm
- Product Net Height
- 363.5 mm
- Product Net Weight
- 14 kg
- Product Net Width
- 278 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1901
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z1SDUHAB000A000000XX
Technical UL/CSA
- Interrupting Rating acc. to UL1066
- (254 V) 65 kA(508 V) 65 kA(635 V) 42 kA
