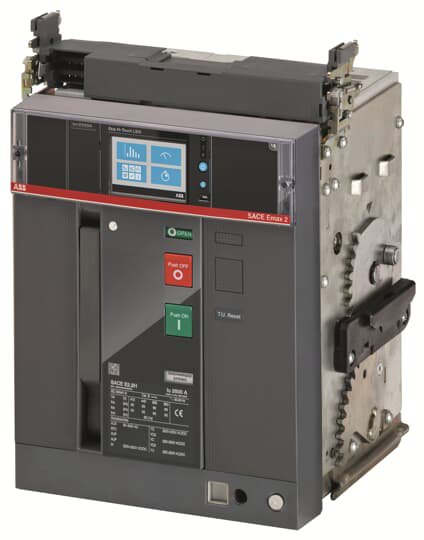

ABB 1SDA073653R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E2.2S 250 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSIG R 250 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2S 250 Ekip Touch LSIG 3p WMP
ABB 1SDA073653R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 100 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 250 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 85 kA(400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 66 kAfor 3 s 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Touch LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- E2.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 383 mm
- Product Net Height
- 425 mm
- Product Net Weight
- 48 kg
- Product Net Width
- 317 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- d1e6a64e-7ae2-429e-a02d-fbaa06335b9f Italy (IT)
- Simplified SCIP
- 9bf6dfe1-fc1c-438e-ae83-5828c162e04d Czech Republic (CZ)bfc1ed96-087f-44f3-b6e1-e204ff9d05a8 Bulgaria (BG)ee3ef730-9ba6-4077-800e-82a24b9c18b7 Sweden (SE)9bde36e6-156e-4cb7-bee9-0308642ca784 Portugal (PT)68309226-5cce-4c2a-ad7f-0c7c349a0e5c Belgium (BE)d776a56a-e7c0-4170-be31-1790b322b608 France (FR)30968b9a-e7ad-4878-9136-1c5d6201cb85 Croatia (HR)897d6904-f78f-4bf9-af7b-48c0742ea608 Germany (DE)08ec9ed5-197a-467a-887c-d58c691040a1 Greece (GR)e0e34077-10d7-4106-a756-e2b354f60454 Germany (DE)04cc454b-6aa5-423e-bca9-ca235fd942d0 Germany (DE)0c0ddc70-043c-49b4-9f03-5fc24dfcdfb6 Denmark (DK)4e1fa6b2-ffe1-445d-bcb7-a452e82afdfa Sweden (SE)3d48a9f6-3104-456b-9aef-1d4a853399a4 Germany (DE)d52208ee-e1d7-419c-b7e8-ebe8a41f0f4a Belgium (BE)00882458-d93e-4891-831d-4ba7776bd67a France (FR)6060ca6d-d8a7-4a25-9804-e13e3730f3e6 Poland (PL)87cbd1b6-f077-41a1-9493-d50c2fdbdf24 Norway (NO)9316899f-84f0-4540-9bd3-653f7ff99d61 Estonia (EE)e7efc943-5f35-4df4-ad79-55dbbce1259b Finland (FI)b904f186-2f63-4236-a3d5-a2c124bd104f Poland (PL)b31b75e9-9a6e-4f41-89ed-c3ad0b75e913 Netherlands (NL)aa31056b-1e6b-42bb-a1d7-d1925c4f6d9d Poland (PL)810a0c45-277e-46d3-b0bb-55ac1a5bbcc6 Hungary (HU)41671d8a-d038-4619-853c-98e7b30346f6 Spain (ES)4fff7561-00a2-4fba-bed8-e77751866b69 Hungary (HU)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z2SMECAF000A000000XX
