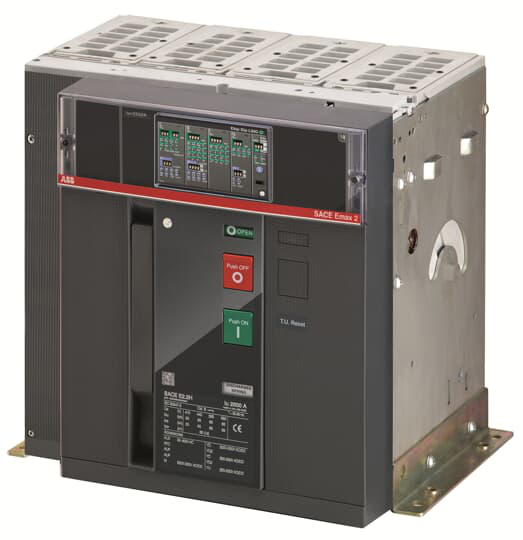

ABB 1SDA073639R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SACE EMAX2 E2.2S 250 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/DIP-LSI R 250 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2S 250 Ekip Dip LSI 4p F HR
ABB 1SDA073639R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 50 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 250 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 85 kA(400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 66 kAfor 3 s 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA
- Rated Uninterrupted Current (Iu)
- 250 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Dip LSI
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- E2.2
- Terminal Connection Type
- Rear flat Horizontal
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 270 mm
- Product Net Height
- 371 mm
- Product Net Weight
- 53 kg
- Product Net Width
- 366 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- d575dc7b-43ae-4d73-97e9-55183a621f72 Italy (IT)
- Simplified SCIP
- 2f10aa18-4558-4ba7-9887-136b7636b97e Greece (GR)9edf89c1-17c8-48ef-adf6-ee63e962917a Croatia (HR)c9b166a6-ed3b-4c0a-b430-03b19caaa30e France (FR)5bbea5d5-af7f-4d48-bae2-63d0316504ed Portugal (PT)23d42643-b10e-4f0f-9c2d-0aeab48caf49 Sweden (SE)17a7fd70-dea0-4319-8a9d-943755f5d660 Bulgaria (BG)da3bc443-fc2a-49a3-8565-b60603317945 Czech Republic (CZ)7b6f582b-208c-4a98-b153-f43c8ada6221 Estonia (EE)f43c130b-d62b-4935-99ca-62a853e9e1e7 Germany (DE)0e9c5067-f7cb-4211-a74b-38c5db585340 Germany (DE)1e5bf191-a271-496b-96ad-755d898edba0 Germany (DE)b850c07c-2a13-49de-a816-dcd061ed1220 Poland (PL)6c5d7fc6-c5c3-429c-9011-5b6f5149ca7e Netherlands (NL)61578976-7c4e-4cb5-bef8-a91fee8b412b Poland (PL)8b2e6dff-f48e-4254-b977-a759eba35722 Germany (DE)f45c980d-1c0a-477e-9535-9f17b939b072 Belgium (BE)fe7c11de-ec99-477f-afb1-e0c288604b3b Denmark (DK)d43d6c5b-a104-40aa-a7a3-ea615a7d5748 Finland (FI)ae6d1fd3-f160-4c85-b5aa-324194580322 Sweden (SE)c4d95d0d-da64-45e3-ae0c-092556e1fcef Hungary (HU)e7c64b5e-c8cf-45de-8d6b-23edb7c06b09 Spain (ES)547b3d30-72b0-48ac-8439-bb11aec862d2 Belgium (BE)6ce68d26-4cb3-4e62-b2cd-21e2b9791e40 Norway (NO)e145363f-ef16-4f82-a934-731d71f51cec France (FR)55d62c8f-ee27-4f79-9d22-284838f49479 Hungary (HU)3838ef94-9510-4fda-844a-f2c6729aba9e Poland (PL)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZBSMECBB000A000000XX
