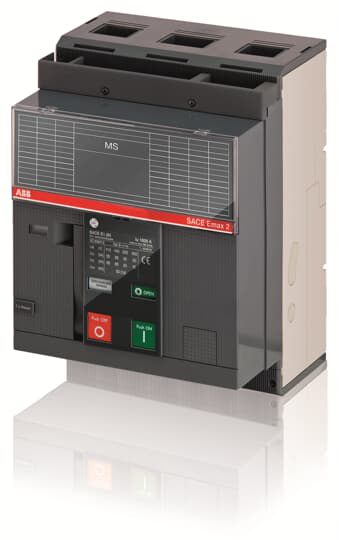

ABB 1SDA073401R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E1.2N/MS 1600 FIXED THREE-POLE WITH FRONT TERMINALSE1.2N/MS 1600 3p F F
ABB 1SDA073401R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0001
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 8000 cycleUe = 500 ... 690 V 6500 cycle30 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Number of Poles
- 3
- Power Loss
- 201 W
- Product Main Type
- SACE Emax 2
- Product Name
- Switch Disconnector
- Product Type
- Switch Disconnector
- Rated Current (In)
- 1600 A
- Rated Impulse Withstand Voltage (Uimp)
- 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 50 kAfor 3 s 30 kA
- Rated Uninterrupted Current (Iu)
- 1600 A
- Rated Voltage (Ur)
- 690 V
- Recommended Screw Driver
- Main Circuit M10
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- E1.2
- Terminal Connection Type
- Front
- Terminal Type
- Bolt
- Tightening Torque
- 45 N·m
- Version
- F
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2360
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27371403
- ETIM 9
- EC000216 - Switch disconnector (low voltage)
- IDEA Granular Category Code (IGCC)
- 5293 >> Switch disconnector
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 183 mm
- Product Net Height
- 296 mm
- Product Net Weight
- 14 kg
- Product Net Width
- 210 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1900 9AKK108468A3028
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- Z1NS00B00000000000XX
