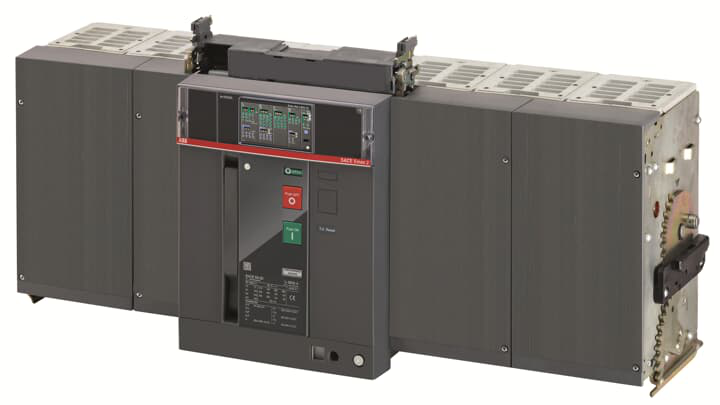

ABB 1SDA073381R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E6.2X/f 6300 FOUR-POLE FULL SIZE NEUTRAL WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LI R 6300 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE6.2X/f 6300 Ekip Dip LI 4p WMP
ABB 1SDA073381R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 2000 cycleUe = 500 ... 690 V 2000 cycle10 cycles per hour
- Mechanical Durability
- 12000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4 / f
- Power Loss
- 1550 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 6300 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 100 kA(660 V AC) 100 kA(690 V AC) 100 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 120 kAfor 3 s 100 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (440 V AC) 200 kA
- Rated Uninterrupted Current (Iu)
- 6300 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Dip LI
- Release Type
- EL
- Short-Circuit Performance Level
- X
- Standards
- IEC
- Sub-type
- E6.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 77 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2364
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 4. Large Equipment (Any External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 383 mm
- Product Net Height
- 425 mm
- Product Net Weight
- 148 kg
- Product Net Width
- 1069 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1905 9AKK108468A1913
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 62d9662b-1fa1-442a-aa0a-ba281aa6a509 Italy (IT)
- Simplified SCIP
- c7dd754d-26b5-4064-a0e8-b138f86bdaa7 Spain (ES)1730199d-6d8c-40a2-a4cf-b15843579214 Belgium (BE)9cd80f24-7caa-4fab-a66b-326693ad358c Hungary (HU)348eb8da-d912-4e79-90bc-7164ecc1781e France (FR)76cfd2c0-f455-4991-b3d5-0c69171c5632 Norway (NO)989e7b37-de3c-4e05-98e8-710f63668121 Hungary (HU)e1b8829d-8682-43f0-934c-dec08cb0613c Poland (PL)f08df707-599f-4e11-b8aa-61cbbef9c092 Czech Republic (CZ)a5e25d3b-58a5-4962-9003-6f1691e5a526 Estonia (EE)747cde54-74f9-464e-8b9b-01e57e2ba6a7 Netherlands (NL)f3406f8b-9bff-4ed5-babb-016a21b225d5 Finland (FI)ab1eed5c-f914-4062-97c9-f88ee8f48ec2 Germany (DE)67f5bcc3-c98a-4e21-be6b-1b903ce61ff1 Denmark (DK)97cb2b42-073f-4f7d-bd89-9794e60f882d Germany (DE)89bdc8c4-48b1-40fc-8b27-41dc46bbed6c Belgium (BE)b2a9a2d7-267f-41b1-9d1b-d347e5f33fa6 Sweden (SE)ea0a9f0a-2018-4976-ab79-5cf1370d8688 Germany (DE)8e3117d9-ad75-477f-b4b2-b6ec81a7bcf3 France (FR)1d668ce6-5375-49dd-8fcb-e0d0a6f530f6 Germany (DE)e854316c-0958-48e1-ac97-c0acaf76de39 Croatia (HR)482d86eb-0c58-46f8-87aa-963fc21a811a Greece (GR)e569994a-68f0-48fa-8922-4c0c28e0f78f Poland (PL)d3b1b5db-f05d-4c3b-8ca9-3aa1e8adf776 Poland (PL)32e2de42-b647-43c0-ad04-b20c6b374758 Sweden (SE)16a9c29e-6d35-4317-b9c4-af7175e0a0e9 Bulgaria (BG)6557173f-a3fa-4d18-8136-e2e46aa5f6f6 Portugal (PT)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
