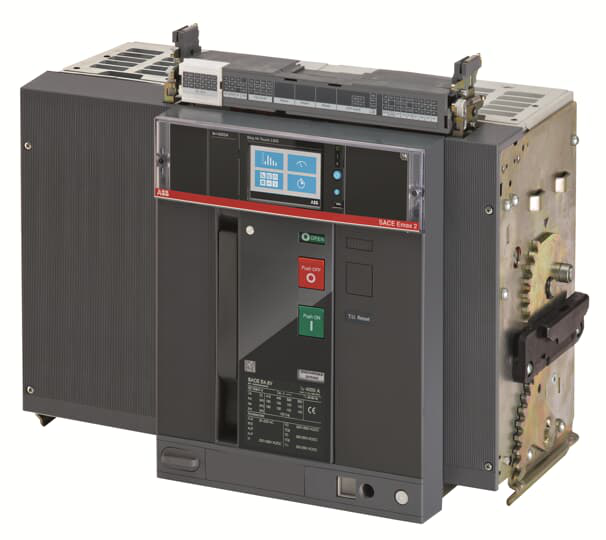

ABB 1SDA073206R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E4.2V 4000 FOUR-POLE WITH SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSIG R 4000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE4.2V 4000 Ekip Touch LSIG 4p WMP
ABB 1SDA073206R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0434
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 5000 cycleUe = 500 ... 690 V 4000 cycle20 cycles per hour
- Mechanical Durability
- 15000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 900 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 4000 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 150 kA(230 V AC) 150 kA(380 V AC) 150 kA(400 V AC) 150 kA(415 V AC) 150 kA(440 V AC) 150 kA(500 V AC) 100 kA(660 V AC) 100 kA(690 V AC) 100 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 100 kAfor 3 s 75 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 150 kA(415 V AC) 150 kA(440 V AC) 150 kA(500 V AC) 100 kA(525 V AC) 100 kA(690 V AC) 100 kA
- Rated Uninterrupted Current (Iu)
- 4000 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Touch LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- V
- Standards
- IEC
- Sub-type
- E4.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2363
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- Object Classification Code
- Q
- WEEE Category
- 4. Large Equipment (Any External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 383 mm
- Product Net Height
- 425 mm
- Product Net Weight
- 74 kg
- Product Net Width
- 551 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1904 9AKK108468A1910
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- ded65229-b5f9-4bdc-b2f1-1b0aafa4edb8 Italy (IT)
- Simplified SCIP
- 28d39a41-e481-49f1-b0e8-aad905c22e16 Hungary (HU)8dabdc05-8b45-46ef-8fec-6dcca8cbeaa5 Spain (ES)a07ebf50-d1cd-4493-938f-b9489ec15f17 Belgium (BE)2653353e-4c74-4df3-9839-431570c82634 Croatia (HR)918eee6b-23bd-4d07-8921-5cc48756f43f Greece (GR)313b1339-0722-44e0-81bc-6a5842e278ad France (FR)62bec6bf-aadb-4cbd-8726-ca51ee986e0d Germany (DE)6b61658b-2ed5-4838-9147-b516136fe62e Germany (DE)55b93305-5792-4d08-bc92-6d9f23d18aef Germany (DE)573e71b0-f188-40fc-a901-eadaf373284b Denmark (DK)3b7afe4a-8795-4cfd-923b-f3cb5631b55b Germany (DE)7003a8b4-27b6-4b77-8fc2-bca93b97dd35 Belgium (BE)14c98c22-cd45-4dae-bbaf-44a0440a56c8 Sweden (SE)19b8cf95-33a0-46f9-9013-01b8879b3753 Finland (FI)a1a67fef-ffb2-4866-859a-533e88372cb4 Netherlands (NL)5860e6de-2b5e-4182-9ca0-abe78edfaa41 Estonia (EE)7dba6ec7-d98f-44dc-bf14-d38b55829995 Czech Republic (CZ)5c6dae25-ebb2-4f39-97b6-6272b74cca0b Hungary (HU)6becf5e2-df1f-4e17-b35d-15ad04640a5f Poland (PL)97e1691e-ade8-4785-986c-72e865557903 Norway (NO)eddd74e7-645e-46f3-b105-cc5c0550f398 France (FR)07adc2fb-a457-43d0-aa43-7406e7eb2d9b Poland (PL)630a04db-a01a-434f-baeb-e6761dd24702 Poland (PL)2de175fc-c0fb-44a7-8b8e-6395dc0779e6 Portugal (PT)e16dddd8-b950-4f1f-b278-3ee09a6cf048 Bulgaria (BG)4036b947-5bc9-4b2d-a987-a6f1bd7a4649 Sweden (SE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZCVWERAF000A000000XX
