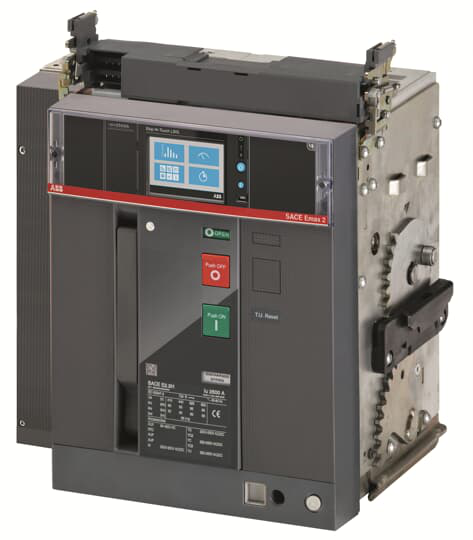

ABB 1SDA073035R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E2.2H 2000 FOUR-POLE WITH SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSI R 2000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2H 2000 Ekip Touch LSI 4p WMP
ABB 1SDA073035R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0432
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 10000 cycleUe = 500 ... 690 V 8000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 450 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 2000 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 100 kA(230 V AC) 100 kA(380 V AC) 100 kA(400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(660 V AC) 85 kA(690 V AC) 85 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 85 kAfor 3 s 66 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 100 kA(415 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 85 kA(525 V AC) 85 kA(690 V AC) 85 kA
- Rated Uninterrupted Current (Iu)
- 2000 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Touch LSI
- Release Type
- EL
- Short-Circuit Performance Level
- H
- Standards
- IEC
- Sub-type
- E2.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 383 mm
- Product Net Height
- 425 mm
- Product Net Weight
- 55 kg
- Product Net Width
- 407 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 5ea49c09-eaf7-4eb3-bf91-27cf72e0bfce Italy (IT)
- Simplified SCIP
- f1c6f135-8eb8-4f92-a263-3b7aa53feddf France (FR)3f1bb0bb-10e5-4f2e-bd17-937ac8f1d51f Spain (ES)7f7b459b-0514-419e-aff6-056685244cbd Belgium (BE)fe7f83f1-286b-452e-b3e0-119defe14ab6 Hungary (HU)19b3e7db-6cb1-43a3-8abc-f6c60bab9006 Sweden (SE)f96f4eaa-a3ab-49e3-8074-380a4b8a389e Finland (FI)bb12cb44-78b5-4cd9-a0a4-f80c1bf65a86 Greece (GR)843a880d-f27c-4e0e-baf4-b80d41f84649 Estonia (EE)c1981b96-8b93-45ba-8c04-ae04fd4b8d82 Belgium (BE)d5c4aa37-ceac-4ce7-b346-6c1b55c153c3 Poland (PL)56e66147-2590-4200-a0a9-4cf58a047c80 Hungary (HU)73b5c393-53cc-4761-a3ec-76fba542145e Norway (NO)44dbc549-44df-4382-8a23-a79b07399aaf Netherlands (NL)2e7a4bf3-caf3-47e5-80bb-4ad544dc17eb Denmark (DK)c642f75e-4b14-4f63-9417-6b58d3f28052 Germany (DE)f4be6819-6985-497d-a434-7d4b8d27d8b1 Germany (DE)61c9dc0b-3009-49ff-82b4-caa16908d209 Croatia (HR)f35bc8bc-a3d7-46fb-b6bf-991031270e6d Germany (DE)e0670e6d-7914-4751-b38a-30ef5692a25f Germany (DE)a380fb7c-8219-49a1-9a12-6a6d8b9a1b44 France (FR)f45c41e8-2edf-44c0-bbec-fd5f72dad1ec Sweden (SE)fe980ff6-d8e2-4b90-9cb8-25cc3b408455 Portugal (PT)3b08ef98-744f-44f7-ba27-4ab1bd153218 Bulgaria (BG)e7710b15-0011-4cfc-959c-e677adc88df2 Poland (PL)3024b61f-b2d2-41e0-9917-7c220bab725a Czech Republic (CZ)cc20ee30-32a7-4935-bafa-939bfa7d203d Poland (PL)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZBHTEKAE000A000000XX
