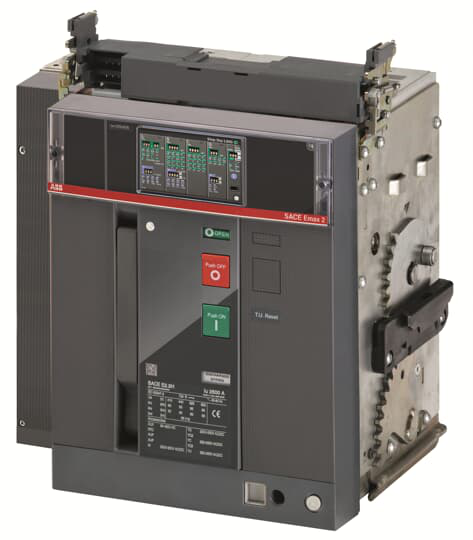

ABB 1SDA072983R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E2.2S 1600 FOUR-POLE WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LSIG R 1600 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2S 1600 Ekip Dip LSIG 4p WMP
ABB 1SDA072983R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0432
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 12000 cycleUe = 500 ... 690 V 10000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 288 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1600 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 85 kA(400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 66 kAfor 3 s 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA
- Rated Uninterrupted Current (Iu)
- 1600 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Dip LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- E2.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 383 mm
- Product Net Height
- 425 mm
- Product Net Weight
- 55 kg
- Product Net Width
- 407 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- e7fed574-7e4c-407d-8727-9c64c295f1db Italy (IT)
- Simplified SCIP
- 0af2cfa3-15a6-40a9-aaeb-518c01e1d6c2 Spain (ES)39c1874e-37fb-46a9-bb17-8a43ef604926 Belgium (BE)ef874c67-0071-4b5a-830f-c5c3d194939e France (FR)81dff1d0-292b-400f-a4a7-22e179dddaac Hungary (HU)b64104d4-c4ef-4239-87c8-84e4dea026de France (FR)9734f0c1-87e5-4a3a-b329-13025f63acb6 Norway (NO)26346eb6-57db-41b5-bf40-8d329b4b63d2 Finland (FI)22ab5156-d579-4f10-9b01-a5b5fc61cfb3 Greece (GR)e967fd04-89b9-4d56-afe1-243506e55ec3 Netherlands (NL)747356d9-8ef6-4800-8531-86aa8e7c7184 Estonia (EE)049a622e-549e-4ae8-9e49-835d2392d22b Germany (DE)68f38bec-ae52-470f-9a0e-4aac3aaba751 Denmark (DK)5fb331bd-65f4-4c32-b6ec-53cb9136a6f3 Germany (DE)265ca643-5130-4e4c-9a44-5d760ef243f8 Belgium (BE)763beba7-11f1-4591-addf-c519ac22dd35 Sweden (SE)2a487862-633b-4dc8-89da-ec7e075f8c31 Germany (DE)9f0d14d2-f1a7-422f-960a-cd1d71e9027b Germany (DE)e97248b9-ff04-49a6-9db6-c85b24fa5715 Croatia (HR)06c22c2b-b001-464c-aaba-5447fe5fe87a Poland (PL)43a99071-5b45-4426-9bbb-f7efb759d9f3 Hungary (HU)917e9505-d4c6-467c-b636-f74f4223391f Czech Republic (CZ)be1b24c8-b3b6-465c-ad31-21903b903823 Poland (PL)ceefb118-0a40-44c1-b748-37a42ad223a3 Poland (PL)7eb809d3-844b-4eb6-981b-8878f6dae449 Sweden (SE)19ad5206-c680-4bdf-8d76-6fe23a7ab1ee Bulgaria (BG)d14c10de-2da0-4dff-97e5-1388686c0abc Portugal (PT)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZBSSEJAC000A000000XX
