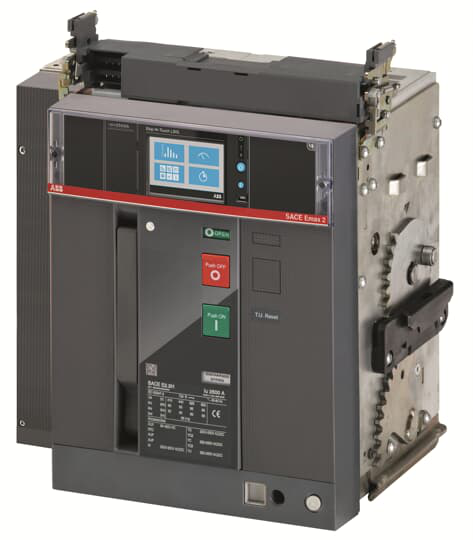

ABB 1SDA072948R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E2.2S 1250 FOUR-POLE WITH SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSI R 1250 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2S 1250 Ekip Hi-Touch LSI 4p WMP
ABB 1SDA072948R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0432
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 176 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1250 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 85 kA(400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 66 kAfor 3 s 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA
- Rated Uninterrupted Current (Iu)
- 1250 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Hi-Touch LSI
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- E2.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 383 mm
- Product Net Height
- 425 mm
- Product Net Weight
- 55 kg
- Product Net Width
- 407 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 155dd595-1780-487c-98f0-a9c9dc6da2b1 Italy (IT)
- Simplified SCIP
- 0944abb2-c3f3-443e-bc59-704e56ce0132 Poland (PL)19995a44-4274-4d79-b523-93d7b838d974 Poland (PL)0b001f87-75f5-4b7f-8a3e-5ba8446dd7f8 Portugal (PT)4524e414-2aaa-43d1-8b9f-07673d78ac64 Bulgaria (BG)4d094b6c-dc70-40d7-bcc1-413f8788b4b4 Hungary (HU)e3006571-6e41-4bd8-99a4-c4023024239f Spain (ES)dfd84aaf-527a-423d-af2a-a8d9509019c4 Belgium (BE)56c8a41e-f9c3-47a5-a518-f0f29d1eb2ee France (FR)4ad708df-1485-450e-9b60-25f743817b91 Poland (PL)6dc0e748-43b2-4ae0-8e54-89074819fec1 Norway (NO)8aa7499f-4eff-4a9e-87a4-3cd5b7b17840 Netherlands (NL)fab9db98-6192-458e-aa03-e782aac97d8d Hungary (HU)cec4dc51-e562-4c5f-83fa-883379e24324 Czech Republic (CZ)6c92c851-7978-4bc3-94b5-b5ad8abda3d2 Croatia (HR)bf6e2b5f-2e72-4962-ad23-8832daaee29a France (FR)7f972e49-9bd5-46f1-8266-c985667e8476 Denmark (DK)5f182c68-4982-4777-8847-e54fd0ef9425 Germany (DE)e1ae1dce-6e2a-426f-9f33-744edeed6497 Germany (DE)3d024d38-4868-4ea8-92a4-86f9c37655f5 Germany (DE)d4565008-db94-41cf-8805-0811837604fc Greece (GR)56324f85-e10a-419b-b535-b928cc49ffa7 Finland (FI)cc22ba83-0d35-4760-a718-18731e4063dc Germany (DE)6d23bb55-8fe4-48da-8e1b-1fe190e5ea1b Sweden (SE)06d5f17e-b51f-40ba-ac73-df79c3b75800 Belgium (BE)d7486cde-3f2c-4e59-9868-5c2bfeec26a7 Estonia (EE)220357c7-3bb1-41f9-941d-5cc6b2f98ae0 Sweden (SE)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZBSREHAJ200A000000XX
