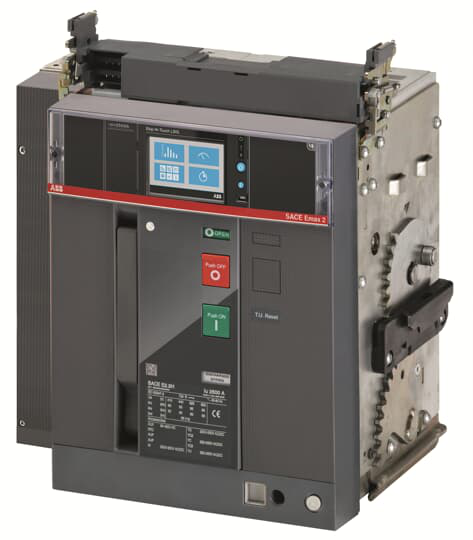

ABB 1SDA072919R1
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E2.2S 1000 FOUR-POLE WITH SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSIG R 1000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE2.2S 1000 Ekip Hi-Touch LSIG 4p WMP
ABB 1SDA072919R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0432
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour
- Mechanical Durability
- 25000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 113 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1000 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 85 kA(400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 66 kAfor 3 s 50 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA
- Rated Uninterrupted Current (Iu)
- 1000 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Hi-Touch LSIG
- Release Type
- EL
- Short-Circuit Performance Level
- S
- Standards
- IEC
- Sub-type
- E2.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 79.1 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2361
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 383 mm
- Product Net Height
- 425 mm
- Product Net Weight
- 55 kg
- Product Net Width
- 407 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1902 9AKK108468A1909
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 13d248a0-b247-4bdc-b8ea-f7074ea17967 Italy (IT)
- Simplified SCIP
- 387c56cc-e4dc-4080-abb9-ce4df9d3ffd8 Hungary (HU)96681fa3-f911-4123-a803-fc6d47c9dffa France (FR)05143698-e08a-4a57-9296-482be3e9ea1b Spain (ES)f74bce4b-08f4-455e-ac2b-5e9c1c967b49 Belgium (BE)114211a2-8750-4e17-b261-9b2c99f1ef86 Belgium (BE)8769fd29-87d4-4eeb-859e-0dfee44afc05 Germany (DE)6f3ac7d1-10b6-410a-b412-44be988f1766 Sweden (SE)b24796d4-7add-4d7e-ba33-b03027b9d9d8 Denmark (DK)d3f30add-79ff-4586-82b5-9d65ab5e90de Germany (DE)2d786de7-66a1-4ca9-b1a0-0a2cf2dc2950 Germany (DE)b86b1025-fe21-4d4b-b611-4922fb6ea4c0 Estonia (EE)906d64d4-1be2-448c-9c40-83b1ebf743be Netherlands (NL)793eb354-f3aa-4134-8333-dcbbf0bd421e Greece (GR)831c0a00-2122-4f62-9f2e-faca944d9bad Finland (FI)86e5fe1a-a710-4835-8ee9-6f77d3a3ca96 Croatia (HR)aaba6687-6ff3-42ea-a0e2-66a091edccb8 Germany (DE)e25a5543-d269-4917-9a06-4e345cc687f2 France (FR)6bf9ddb1-88c5-4c72-9643-ad7edc4f135f Hungary (HU)c6df9db5-e644-4cca-8efe-6c001322ebfe Norway (NO)658f4736-b480-4509-ac95-66e16ed445b8 Poland (PL)aa96ab6f-cbda-4b7a-ad41-8ecb1a6a1d82 Czech Republic (CZ)f6509adb-7b5e-475e-93e2-0f0501d97730 Sweden (SE)a0738b64-3d5d-45bf-ada2-9ab5fad2bf1a Bulgaria (BG)76d84ed7-7be4-4af4-8f67-f25d0bbaf1c6 Poland (PL)f1bbebb9-79e5-43ff-ab10-312dd441a744 Poland (PL)a0473575-a2a0-498d-b8ee-f1fac9dd75a2 Portugal (PT)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZBSQEGAK200A000000XX
