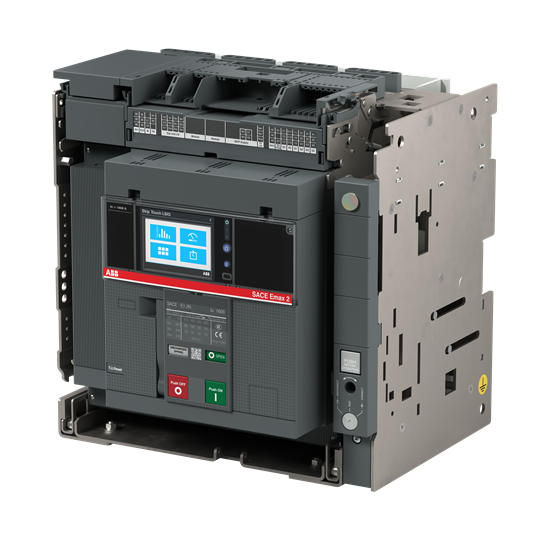

ABB 1SDA072865R1
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
MOVING PART FOR C.BREAKER SACE EMAX2 E1.2N 1600 FOUR-POLE WITH SOLID-STATE RELEASE IN AC EKIP/TOUCH-LSI R 1600 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSEDE1.2N 1600 Ekip Touch LSI 4p WMP
ABB 1SDA072865R1 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
ABB EcoSolutions
- ABB EcoSolutions
- Yes
Additional Information
- CAD Dimensional Drawing
- 1SDH001252R0065
- Current Type
- AC
- Electrical Durability
- Ue =< 440 V 3000 cycleUe = 500 ... 690 V 6500 cycle30 cycles per hour
- Mechanical Durability
- 20000 cycle60 cycles per hour
- Neutral Pole Current ([%Iu])
- 100 %
- Number of Poles
- 4
- Power Loss
- 400 W
- Product Main Type
- SACE Emax 2
- Product Name
- Air Circuit Breaker
- Product Type
- Air Circuit Breaker
- Rated Current (In)
- 1600 A
- Rated Impulse Withstand Voltage (Uimp)
- acc. to IEC 60947-2 12 kV
- Rated Insulation Voltage (Ui)
- AC 1000 V
- Rated Operational Voltage
- 690 V AC
- Rated Service Short-Circuit Breaking Capacity (Ics)
- (220 V AC) 66 kA(230 V AC) 66 kA(380 V AC) 66 kA(400 V AC) 50 kA(415 V AC) 50 kA(440 V AC) 50 kA(500 V AC) 50 kA(660 V AC) 50 kA(690 V AC) 50 kA
- Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)
- 100 %
- Rated Short-time Withstand Current Low Voltage (Icw)
- for 1 s 50 kAfor 3 s 30 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)
- (400 V AC) 66 kA(415 V AC) 66 kA(440 V AC) 66 kA(500 V AC) 50 kA(525 V AC) 50 kA(690 V AC) 50 kA
- Rated Uninterrupted Current (Iu)
- 1600 A
- Rated Voltage (Ur)
- 690 V
- Release
- Ekip Touch LSI
- Release Type
- EL
- Short-Circuit Performance Level
- N
- Standards
- IEC
- Sub-type
- E1.2
- Version
- W
Circular Value
- Circular Design Principles Recyclability Rate
- Design for Closing Resource Loops - Standard EN45555 - 76.4 %
- Conflict Minerals Reporting Template (CMRT)
- 9AKK108467A5658
- End of Life Instructions
- 9AKK108468A2360
- Group Waste to Landfill Target
- UL 2799 Zero Waste To Landfill Validation available
- Toxic Substances Control Act - TSCA
- 9AKK108467A8326
Classifications
- eClass
- V11.1 : 27370409
- ETIM 9
- EC000228 - Power circuit-breaker for trafo/generator/installation protection
- IDEA Granular Category Code (IGCC)
- 4926 >> Air circuit breakers
- Object Classification Code
- Q
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Dimensions
- Product Net Depth / Length
- 271 mm
- Product Net Height
- 363.5 mm
- Product Net Weight
- 20 kg
- Product Net Width
- 348 mm
Eco Transparency
- Environmental Product Declaration - EPD
- 9AKK108468A1900 9AKK108468A3028
Environmental
- Environmental Information
- 9AKK10103A1038 9AKK108467A6707
- REACH Declaration
- 9AKK108466A1425
- RoHS Information
- 9AKK108466A1424
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP
- 12507fa2-b1b1-4732-8dd6-05d4adc5d387 Italy (IT)
- Simplified SCIP
- 3fe19a76-e32b-4b3f-8a22-e5ab49af8877 Netherlands (NL)a432dfbd-5aaa-4db1-a0c7-fd42a1b25981 Hungary (HU)021f8cd6-18bd-44ec-b10b-5945c67afb97 Norway (NO)9037e4b9-9107-4e66-ba36-9a45b42858a3 Poland (PL)afa95848-e5c4-46df-8c60-82b2b79cde8b Germany (DE)6a92f621-77f1-4eda-b556-795515897712 Denmark (DK)6faacf6e-91dd-404a-ab57-e37e41976d01 Germany (DE)16aa3bd3-d686-4c91-8855-145a5e5baf0a Germany (DE)ca062ee2-c39c-46ff-aee9-25d152180f5a Croatia (HR)8dc09ce4-b2cd-4f70-906b-b2f6a8f220c3 France (FR)3dbb4ecd-f36a-4a9c-99f0-e1d50fd1955d Germany (DE)6263d6c7-4075-4826-b38c-e91342cd41aa Belgium (BE)518038cc-1fac-450c-9fc0-ad1a16198a32 Sweden (SE)553db7e3-c4bc-480f-9d41-9ffdbb4b67a4 Finland (FI)a9038345-380a-4549-b01d-13cc1ba50a66 Greece (GR)8dc4e966-db80-4c7f-8db8-5e11f4cb7512 Estonia (EE)bac5282c-843d-495d-b01d-cb7330004658 Poland (PL)e26b0698-54ec-4f97-98f3-6af024176f92 Czech Republic (CZ)082c8c67-6000-4bb9-b52a-3356547fb040 Poland (PL)04595cf8-f973-4e89-9862-2607bbec1596 Bulgaria (BG)77a81faa-d2b3-47db-80b8-ff480b7385d6 Sweden (SE)7c6949d3-17ca-4368-b984-60516d18a442 Portugal (PT)7ef42ab3-2c6a-43af-8260-b5d4dc567076 Spain (ES)7848e3ab-ec6d-4bf3-93f3-817d26942d47 France (FR)f33b0fc3-23cb-4e5c-8df0-43e02d45f62f Belgium (BE)b3ad0271-5354-4320-989e-1119b67b280d Hungary (HU)
Ordering
- Customs Tariff Number
- 85362090
- Minimum Order Quantity
- 1 piece
- Order Code US and Canada
- ZANSEJAE000A000000XX
